Electric Pallet Jack With 1500KGS Lifting Capacity , CBD15W-E , Economic Model

China Electric Pallet Jack With 1500KGS Lifting Capacity , CBD15W-E , Economic Model supplier

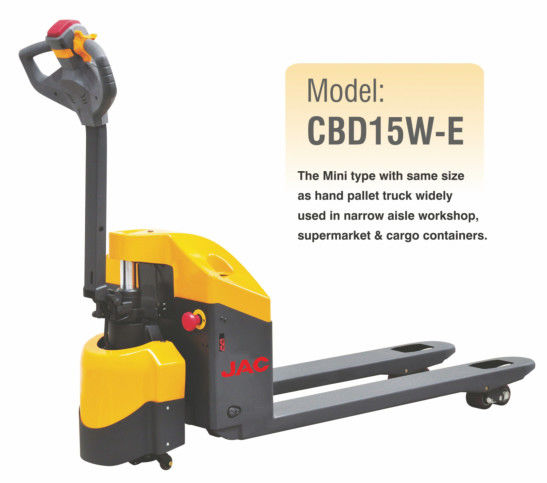

Large Image :  Electric Pallet Jack With 1500KGS Lifting Capacity , CBD15W-E , Economic Model

Product Details:

Place of Origin: CHINA
Brand Name: JAC
Certification: CE,ISO9001,ISO14001,OHSAS18001
Model Number: CBD15WE

Payment & Shipping Terms:

Minimum Order Quantity: 1UNIT
Price: negotiable
Packaging Details: Wooden Package
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 1000UNITS/MONTH
Contact Now
Detailed Product Description
Load Capacity: 1500KGS Warranty: One Year
Power: Electricity Color: Red Or Yellow

Powered Pallet Jack With Loading Capacity 1.5 Ton , Narrow Aisle Warehouse Tool , Red / Yellow Color

The Mini type with same size as hand pallet truck widely used in narrow aisle workshop, supermarket & cargo containers.


Advantages:
• Adopting floating balance wheel can prevent the side swing of the truck when travelling. Travel smoothly and no swing; great anti-vibration.
• The whole balance wheel can be removed, easy to maintain.
• The rock arm mechanism integral structure which improves the structure strength effectively, meanwhile, share and adjust the even force from the fork. Reduce the obvious deflection in fork height after a long use and when loading.
• The drive wheel adopts horizontal type structure which makes the layout position of the motor higher off the ground to prevent the water,dust and greasy dirt gluing on the motor effectively and improve working condition of the motor.
• The truck is equipped with a height limit switch. Cut off the lifting circuit when lifting height approaches the highest point to disconnect the power of the hydraulic power unit to prevent the noise from the spillover of the hydraulic station and save the energy caused by spillover.



Parameters:

Model   CBD15WE
Loading capacity Q(kg) 1500
Loading centre distance c(mm) 600
Fork height,lowered h13(mm) 85 / 75
Tyre size,front mm Φ195×70
Tyre size,rear (single) mm Φ80×93 / Φ74×93
Tyre size,rear (double) mm Φ80×70 / Φ74×70
Wheels, number front rear (x = driven wheels)   1x-2/4
Max. lifting height h3(mm) 200/190
Height of tiller in drive position min./max h14(mm) 700/1250
Overall length I1 (mm) 1654/1724
Length to face of forks l2(mm) 504
Overall width b1(mm) 685/562
Fork dimensions s/e/l(mm) 53/160/1150(1220)
Width overall forks b5(mm) 520/550/685
Aisle width for pallets 1000×1200(1200crossways) Ast(mm) 1854/1924
Aisle width for pallets 800×1200(1200lengthways) Ast(mm) 1904/1924
Turning radius Wa(mm) 1454/1424
Travel speed, laden/unladen Km/h 4.3/4.8
Battery voltage/nominal capacity K20 V/Ah 24/65
Battery dimensions l/w/h mm 228/138/214
Battery weight Kg 36
Service weight(with battery) Kg 205
