| Load Capacity: | 1000KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 3m-5m | Controller: | Curtis Or PG |

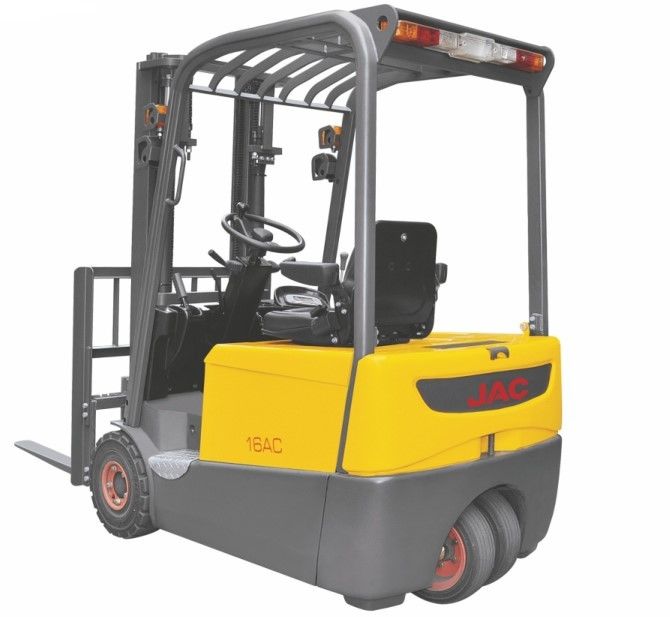

Electric Three Wheel Forklift , Load Capacity 1 Ton , Narrow Aisle Forklift , Small Turning Radius , Red / Yellow Color
Advantages:
SAFETY AND STABLITY
1. Germany imported driving axle.
2. AC control system CURTIS with sensitive reaction.
3. Multifunctional display with using time , fault code, battery status, forklift running information.
4. AC driving motor without brush, free of maintenance.
5. AC motor with regenerative braking.
6. Three running modes according to different needs: low speed, moderate speed and high speed.
7. Wet disk brake can make the forklift break stably, ensures high durability and safety.
8. Very small turning radius is only 1552mm and minimum right angle stacking aisle is only 3220mm.
ERGONOMICS
1. With two step pedal easy to get into the driving cab.
2. Adjustable steering wheel column , the driver can adjust the position according to his need.
3. Integrated light switch and steering wheel. 4. ABS instrument board in the driving-box is durable and beautiful.
5. The design of the controlling lever position fit the Ergonomic principles which can reduce the driver’s fatigue.
6. clearly and wide view mast with good visibility.
7. Emergency power cut off plug for emergency stop.
SERVICE ABILITY
1. Easy maintained controller and steering potentiometer.
2. maintenance free wet disk brake.
3. Lifting and driving AC motors without carbon brush free to maintain, which greatly reduce maintenance cost. And they all adopt external encoder, so the maintenance and service is more convenient.
4. Over discharge protecting system: While the battery discharges less than 20%, the instrument warming light will light.
5. Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.
6. Side way battery box is easy to change battery. it is safety and convenient.
Parameters:
| Model | CPD10S-10 | |
| Drive | Rear Wheel Drive | |
| Operation type | seated | |
| Load capacity/rated load | Q(kg) | 1000 |
| Load center distance | c(mm) | 500 |
| Load distance,center of drive axle to fork | x(mm) | 284 |
| Wheelbase | y(mm) | 1080 |
| Service weight (with battery) | kg | 2180 |
| Axle loading,laden front/rear | kg | 2700/480 |
| Axle loading,unladen front/rear | kg | 720/1460 |
| Tyres:solid rubber, superelastic, pneumatic,polyurethane | super elastic solid tires | |
| Tyre size, front | 16x6x101/2 | |
| Tyre size, rear | 280×100/PU | |
| Wheels,number front rear(x=driven wheels) | 2/1x | |
| Tread,front | b10(mm) | 892 |
| Tread,rear | b11(mm) | 0 |
| Tilt of mast/fork carriage forward/backward | . | 3/6 |
| Height,mast lowered | h1(mm) | 2126-2240 |
| Free lift | h2(mm) | option |
| Lift Height | h3(mm) | 3000-5000 |
| Height,mast extended | h4(mm) | 3617-5617 |
| Height of overhead guard(cabin) | h6(mm) | 1965 |
| Seat height/stand height | h7(mm) | 850 |
| Coupling height | h10(mm) | 480 |
| Overall length | l1(mm) | 2495 |
| Length to face of forks | l2(mm) | 1575 |
| Overall width | b1(mm) | 1012 |
| Fork dimensions | s/e/l(mm) | 35/100/950 |
| Fork carriage DIN 15173,class/type A,B | 2A | |
| Fork-carriage width | b3(mm) | 900 |
| Ground clearance,laden,below mast | m1(mm) | 100 |
| Ground clearance,centre of wheelbase | m2(mm) | 85 |
| Aisle width for pallets 1000*1200 cross-ways | Ast(mm) | 2950 |
| Aisle width for pallets 800*1200 length-ways | Ast(mm) | 3050 |
| Turning radius | Wa(mm) | 1290 |
| Travel speed,laden/unladen | Km/h | 6.5/6.5 |
| Lift speed,laden/unladen | mm/s | 150/180 |
| Lowering speed, laden/unladen | mm/s | <600 |
| Max.gradeability,laden/unladen | % | 10/15 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/400 |
| Battery weight | kg | 330 |
| Sound level at the driver’s ear acc.to DIN 12053 | dB(A) | 68 |
