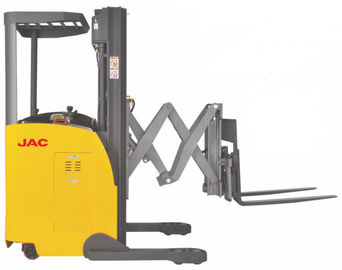

Electric Seated Reach Truck Forklift 1.5 Ton Load Capacity With Double Scissor
electric reach truck
,warehouse reach truck
Electric Fork Reach Truck With Load Capacity 1.5 Ton , Seated Truck With Double Ccissor , Red / Yellow Color
SAFETY AND STABILITY:
• Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.
• Stepless speed control Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.
• Equipped with adjustable hand-rest, adapted to different operator.
• Multi-function display: battery state, hour meter, fault indicator etc.
• Two sides-way battery with roll-out system is very convenient to replace batteries.
• Damping cushion for low-noise operation.
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
STRUCTURAL:
• Low Center of Gravity ensures the stable operation.
• Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.
• The Scissor Reach Forks is operated by electric controller, which makes operation stable and no impact.
SERVICEABILITY:
• Low battery protection setting prolongs the battery use time.
• CANbus technology reduces wiring complexity and increase reliability.
• All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
• The back cover is easy to open for maintenance and adjustment of parts of valve, oil tube and electronic parts.
Parameters:
| Model | CQDH15C (double scissors) | ||
| Drive type | battery | battery | |
| Load capacity/Rated load | Q(kg) | 1000 | 1000 |
| Load centre distance | c(mm) | 500 | 500 |
| Load distance, centre of drive axle fork | x(mm) | 159 | 135 |
| Tyre size, front | mm | 280×82+160×60 | 280×82+160×60 |
| Tyre size, rear | mm | 125×82(4) | 125×82(4) |
| Wheels, number front rear(x=driven wheels) | 1+2 | 1+2 | |
| Tilt of mast/fork carriage forward/backward) | Grad | 2/5 | 2/5 |
| Height, mast lowered | h1(mm) | 2375 2125 2625 | 2675 2345 2185 2505 |
| Free lift | h2(mm) | ~ ~ ~ | 2000 1700 1575 1825 |
| Max. lift height | h3(mm) | 3500 3000 4000 | 4500 5000 5500 6000 |
| Height, mast extended | h4(mm) | 4535 4035 5035 | 7035 6035 5535 6535 |
| Height of overhead guard | h6(mm) | 2246 | 2246 |
| Overall width | b1/b2(mm) | 1308 /1040 | 1370/1040 1308/1040 |
| Overall length | l1(mm) | 2585 | 2609 |
| Length to face of forks | l2(mm) | 1515 | 1539 |
| Fork Dimension | s/e/l(mm) | 35/100/1070 | 35/100/1070 |
| Reach distance | l4(mm) | 1200 | 1200 |
| Fork height, lowered | h8(mm) | 130 | 130 |
| Distance of “X” (see below diagram) | mm | 350 | 350 |
| Overall length (excluding the fork) | mm | 1868 | 1868 |
| Ground clearance, centre of wheelbase | m2(mm) | 65 | 65 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2951 | 2971 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 3034 | 3056 |
| Turning radius | Wa(mm) | 1718 | 1718 |
| Travel speed, laden/unladen | Km/h | 6.5/7 | 6.5/7 |
| Lift speed, laden/unladen | m/s | 0.135/0.16 | 0.135/0.16 |
| Lowering speed, laden/unladen | m/s | 0.15/0.12 | 0.15/0.12 |
| Battery voltage, nominal capacity K5 | V/Ah | 24/420(560) | 24/420(560) |
| Battery weight | kg | 450 | 450 |
| Battery dimension l/w/h | mm | 770x336X610 | 770x336X610 |
| Service weight (with battery) | kg | 2530 2480 2590 | 3030 2830 2730 2930 |
