Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1000KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Manual And Electrical | Color: | Yellow And Red |

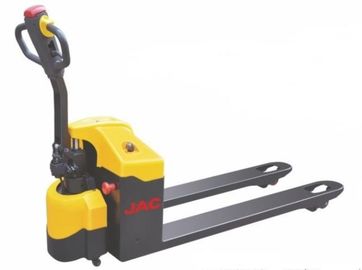

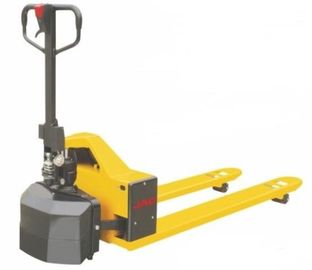

Electric Pallet Jack , Load Capacity 1 Ton , Electric Pallet Truck , Brushless Motor
Advantages:
• Brushless DC motor,with maintenance free,low noise.
• Sealed batteries free of maintenance,safe operation and no pollution.
• Built-in charger.
• Two-speed driving system.
• Emergency brake switch.
• Manual lifting and motor driving.
Parameters:
| Model Name | CBD10A-Ⅱ | |
| Load Capacity | Q(kg) | 1000 |
| Load centre distance | c(mm) | 500 |
| Fork height, lowered | h13(mm) | 85/75 |
| Tyre size,front | mm | Φ185 |
| Tyre size,rear | mm | Φ80/Φ74 |
| Max. lift height | h3(mm) | 200/190 |
| Height of tiller in drive position min./max. | h14(mm) | 670/1244 |
| Overall length | l1(mm) | 1685/1755 |
| Length to face of forks | l2(mm) | 535 |
| Fork dimensions | s/e/l(mm) | 45/160/1150(1220) |
| Width overall forks | b5(mm) | 520/550/680 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1885/1955 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1935/1955 |
| Turning radius | Wa(mm) | 1490/1560 |
| Travel speed,laden/unladen | Km/h | 2.6/3.8 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/38 |
| Battery weight | kg | 28.5 |
| Service weight (with battery) | kg | 150 |
