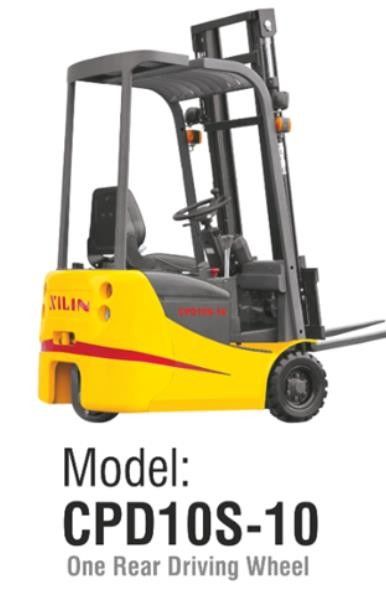

Three Wheel Electric Forklift Truck 1 Ton Loading Capacity Small Turning Radius

China Three Wheel Electric Forklift Truck 1 Ton Loading Capacity Small Turning Radius supplier

Large Image :  Three Wheel Electric Forklift Truck 1 Ton Loading Capacity Small Turning Radius

Product Details:

Place of Origin: CHINA
Brand Name: JAC
Certification: CE,ISO9001,ISO14001,OHSAS18001
Model Number: CPD10S-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000UNITS/MONTH
Contact Now
Detailed Product Description
Load Capacity: 1000KG Warranty: One Year
Power: Electricity Color: Yellow
Lift Height: 3m-5m Controller: Curtis Or PG

Narrow Aisle Forklift , Three Wheel Forklift , Load Capacity 1 Ton , Small Turning Radius , Red / Yellow Color





Advantages:



ERGONOMICS
1. clearly and wide view mast with good visibility.
2. Emergency power cut off plug for emergency stop.

3. With two step pedal easy to get into the driving cab.
4. Adjustable steering wheel column , the driver can adjust the position according to his need.
5. Integrated light switch and steering wheel. 4. ABS instrument board in the driving-box is durable and beautiful.
6. The design of the controlling lever position fit the Ergonomic principles which can reduce the driver’s fatigue.



SAFETY AND STABLITY
1. AC motor with regenerative braking.
2. Three running modes according to different needs: low speed, moderate speed and high speed.
3. Wet disk brake can make the forklift break stably, ensures high durability and safety.
4. Very small turning radius is only 1552mm and minimum right angle stacking aisle is only 3220mm.

5. Germany imported driving axle.
6. AC control system CURTIS with sensitive reaction.
7. Multifunctional display with using time , fault code, battery status, forklift running information.
8. AC driving motor without brush, free of maintenance.


SERVICE ABILITY
1. Easy maintained controller and steering potentiometer.
2. maintenance free wet disk brake.
3. Lifting and driving AC motors without carbon brush free to maintain, which greatly reduce maintenance cost. And they all adopt external encoder, so the maintenance and service is more convenient.
4. Over discharge protecting system: While the battery discharges less than 20%, the instrument warming light will light.
5. Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.
6. Side way battery box is easy to change battery. it is safety and convenient.



Parameters:

Model Name   CPD10S-10
Drive   Rear Wheel Drive
Operation type   seated
Load capacity/rated load Q(kg) 1000
Load center distance c(mm) 500
Load distance,center of drive axle to fork x(mm) 284
Wheelbase y(mm) 1080
Service weight (with battery) kg 2180
Axle loading,laden front/rear kg 2700/480
Axle loading,unladen front/rear kg 720/1460
Tyres:solid rubber, superelastic, pneumatic,polyurethane   super elastic solid tires
Tyre size, front   16x6x101/2
Tyre size, rear   280×100/PU
Wheels,number front rear(x=driven wheels)   2/1x
Tread,front b10(mm) 892
Tread,rear b11(mm) 0
Tilt of mast/fork carriage forward/backward . 3/6
Height,mast lowered h1(mm) 2126-2240
Free lift h2(mm) option
Lift Height h3(mm) 3000-5000
Height,mast extended h4(mm) 3617-5617
Height of overhead guard(cabin) h6(mm) 1965
Seat height/stand height h7(mm) 850
Coupling height h10(mm) 480
Overall length l1(mm) 2495
Length to face of forks l2(mm) 1575
Overall width b1(mm) 1012
Fork dimensions s/e/l(mm) 35/100/950
Fork carriage DIN 15173,class/type A,B   2A
Fork-carriage width b3(mm) 900
Ground clearance,laden,below mast m1(mm) 100
Ground clearance,centre of wheelbase m2(mm) 85
Aisle width for pallets 1000*1200 cross-ways Ast(mm) 2950
Aisle width for pallets 800*1200 length-ways Ast(mm) 3050
Turning radius Wa(mm) 1290
Travel speed,laden/unladen Km/h 6.5/6.5
Lift speed,laden/unladen mm/s 150/180
Lowering speed, laden/unladen mm/s <600
Max.gradeability,laden/unladen % 10/15
Battery voltage,nominal capacity K5 V/Ah 24/400
Battery weight kg 330
Sound level at the driver’s ear acc.to DIN 12053 dB(A) 68
