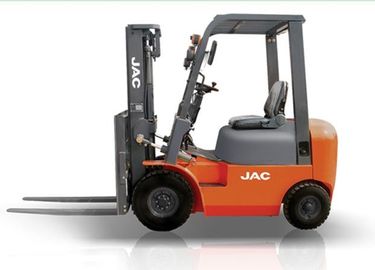

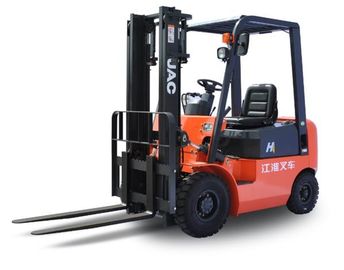

Diesel 1 Ton Forklift Truck Small Capacity Eco Friendly Design Max Lift Height 6m

Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:CPCD10H
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/Month
Product Details
Highlight:

diesel operated forklift

,

diesel engine forklift truck

,

diesel powered forklift
Load Capacity: 1000KG
Warranty: One Year
Power: Diesel
Color: Red Or Orange
Lift Height: 3m-6m
Engine Brand: Isuzu Or Xinchang
Product Description

Small Capacity 1Ton , Diesel Forklift , Apply Chinese engine , Optional Isuzu Engine , Orange or Red Color





As a manufacturer of diesel forklifts in China, we offer two series of forklifts: the H series and the J series, which feature an adjustable steering wheel and seat, as well as a reasonable layout for each operating system, fully embodying ergonomic principles and effectively reducing Labor intensity. When you work outside with a forklift, you may need a lot of power to improve. Then the JAC diesel forklift will be the right choice for you.



1. Small overall dimension,low centre of gravity, small turning radius, and excellent manoeuvrability.
2. The frame and the steering axle of the material handling equipment are engineered with shock absorber to reduce the impact and maximize the comfort during operation.
3. Multiple engines for selection.
4. The eco-friendly design of the diesel forklift offers full protection to both the user and the environment.


Parameters:

Model Name CPCD10
1

Model's

Feture

 Power Type 　 Diesel
2 Load Capcity kg 1000
3 Load center mm 500
4 Lift height mm 3000
5 Free lift height mm 155
6 Forkk size L*W*H mm 920×100×40
7 Mast tilt FR/RR . 6/12
8 Min turning Radius mm 1880
9 Min Right angle stacking aisle width mm 3290
10 Min right angle aisle width mm 2080
11 Min ground clearance mm 110
12 Height of overhead guard mm 2060
13 Overhang mm 410
14 Model's Performance Max driving speed Full load km/h 14.5
15 Max Lifting speed Full load mm/s 550
16 Max drawbar pull Full load KN 12
17 Gradeabiity % 20
18 Model's Dimension Overall length Without forks mm 2160
19 Over width mm 1080
20 Height mast lifted(with backrest) mm 3930
21 Height mast lowered mm 2010
22

Model's

Chassis

 Tyre Front 　 6.50-10-10PR
23 Rear 　 5.00-8-10PR
24 Wheelbase mm 1400
25 Tread FR/RR mm 891/920
26 Self weight Without load Kg 2430
27 Drive Battery Voltage / Capacity V/Ah 12/80
28 Engine Model 　 XC485BPG
29 Rated Power kw/r.p.m 30/2600
30 Rated Torque Nm/r.p.m 131/1820
31 Bore * sTROKE mm 85×100
32 No.of Cylinder 　 4
33 Displacement L 2.27
34 Fuel tank capacity L 49
35 Transmission 　 1/1manual shift
36 Operating Pressure Mpa 15.5
37 Supplement Tire type (FR/RR) 　 Pneumatic
38 Numbers of wheels pcs 2/2
39 lowering speed (full load) mm/s 430
40 Lowering speed ( unload) mm/s 530
41 Axle load distribution (full load) (FR/RR) kg 2840/380
42 Axle load distribution (unload) (FR/RR) kg 1220/1020



Feartures:

Diesel 1 Ton Forklift Truck Small Capacity Eco Friendly Design Max Lift Height 6m 0





  Diesel 1 Ton Forklift Truck Small Capacity Eco Friendly Design Max Lift Height 6m 1Diesel 1 Ton Forklift Truck Small Capacity Eco Friendly Design Max Lift Height 6m 2

Diesel 1 Ton Forklift Truck Small Capacity Eco Friendly Design Max Lift Height 6m 3 Diesel 1 Ton Forklift Truck Small Capacity Eco Friendly Design Max Lift Height 6m 4

Diesel 1 Ton Forklift Truck Small Capacity Eco Friendly Design Max Lift Height 6m 5 Diesel 1 Ton Forklift Truck Small Capacity Eco Friendly Design Max Lift Height 6m 6
