Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 3000KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Controller: | Curtis Or Imotion | Lift Height: | 3m-6m |

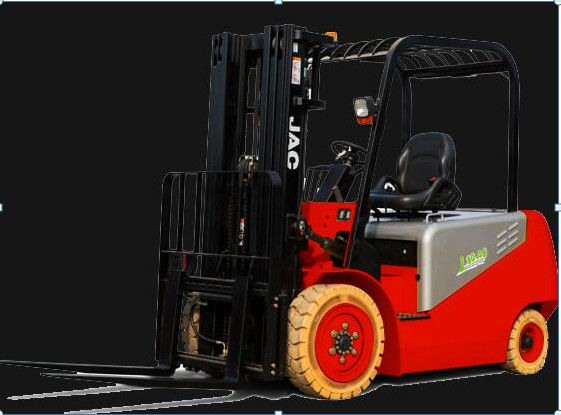

CPD30J 3 Ton Loading Capacity Battery Operated Forklift ,white wheels, , Red or Yellow Color ,
The forklift powered by electric motors and is equipped with white wheels and operate via robust traction batteries with a long service lifeis suitable for the usage inner warehouse that has high requirement for the exhaust air pollution. The forklift will be no noise and exhaust gas pollution. As people attaching importance to environmental protection, electric forklift are gradually replacing the internal combustion forklifts.
JAC Electric Forklift Advantages:
1. Rear-mounted lifter motor is easy to repair.
2. The high-performance power supply of our electric powered forklift truck is easy to plug and unplug.
3. One-piece framework improves strength.
4. Streamlined design includes an integrated tail lamp.
5. The foot brake pedal is installed slightly higher than the Curtis kernel accelerator for a ergonomic design.
6. The JAC lift truck's main power supply switch protects the electrical control system and prevents accidents.
7. Curtis LED screen displays important information directly so the operator can troubleshoot problems quickly.
8. Controller imported from the brand Curtis.
9. The steering wheel's short diameter makes it lightweight and easy to maneuver.
10. New foot brake with good friction shortens the braking distance by l-1.3m.
11. Comfortable seating features an adjustable backrest, elastic seatbelt and mechanical shock absorber installed at the base of the seat.
12. Batteries with different capacities are available.
13. The shock-absorbing steering axle of our fork truck greatly improves the comfort level of operation.
14. All cables are equipped with insulating caps and are insulated and waterproof.
15. Horizontally arranged transmission device enhances driving efficiency and prolongs the duration of the battery.
Parameters:
| Model Name | Unit | CPD30J | |||
| 1 | Load Capacity | kg | 3000 | ||
| 2 | Load Center | mm | 500 | ||
| 3 | Mast Lifting Height | mm | 3000 | ||
| 4 | Mast Free Lifting | mm | 160 | ||
| 5 | Fork | mm | 1070×125×45 | ||
| 6 | Mast Tilt( FR/RR) | . | 6/12 | ||
| 7 | Turning Radius | mm | 2497 | ||
| 8 | Ground Clearance | mm | 120 | ||
| 9 | Height of Overhand Guard | mm | 980 | ||
| 10 | Overhang (FR) | mm | 474 | ||
| Max.Speed(load) | km/h | 12 | |||
| 12 | Max.Lifting Speed(load) | mm/s | 260(BC) | 260(AC) | |
| 13 | Max. Gradeability | % | 15 | 15 | |
| 14 | Overall length(No fork) | mm | 2585 | ||
| 15 | Overall Width | mm | 1250 | ||
| 16 | Wheelbase | mm | 1700 | ||
| 17 | Tread | Fron/Rear | mm | 1000/990 | |
| 18 | Service Weight | kg | 4960 | ||
| 19 | Battery | Voltage/Capacity | V/Ah | 80/500 | |
| 20 | Motor | Traveling | KW | 16.6 | |
| 21 | Lifting | KW | 13 | 13.5 | |
| 22 | Way of Control | BC | AC | ||
| 23 | Operating Pressure | Mpa | 18.5 | ||
| 24 | Max.Drawbar Pull | KN | 21 | ||
