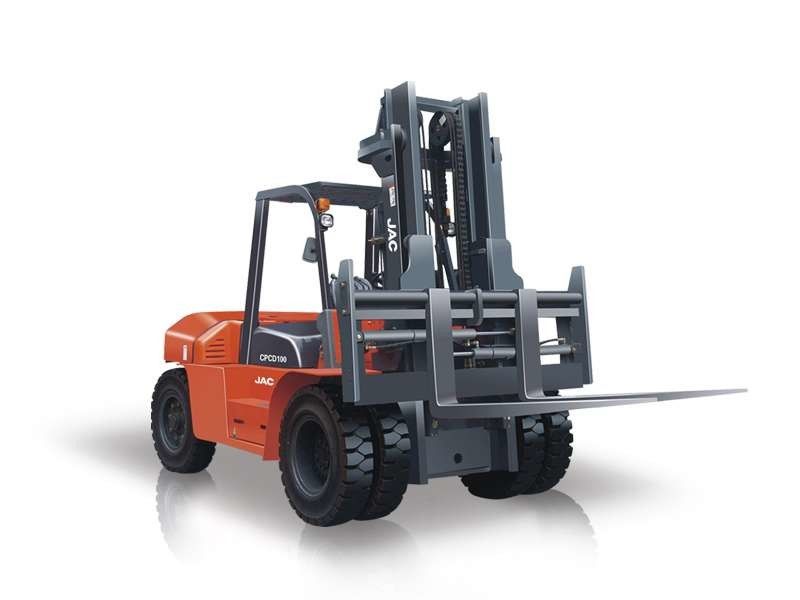

JAC 10 Ton Diesel Counterbalance Forklift Heavy Equipment Forklift Eco - Friendly
Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:CPCD100
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/Month
Product Details
Highlight:
diesel operated forklift
,diesel engine forklift truck
,diesel powered forklift
Load Capacity:
10000KG
Warranty:
One Year
Power:
Diesel
Color:
Red
Lift Height:
3m-6m
Engine Brand:
Isuzu Or Xichai
Product Description
JAC brand Load 10 tons Capacity Diesel Powered Large Capacity Forklift , Isuzu Engine for option , Heavy Equipment Forklift
When you work outside with your forklift truck, you will need the strong and powerful forklift. Then JAC diesel forklift will be your right choice.
As a China diesel forklift manufacturer, we offer two series of forklift trucks: H series and J series, which are characterized by adjustable steering wheel and seats, as well as rational layout of each operating syetem, fully embodying the principles of ergonomics and effectively reducing the labor intensity.
1. The frame and the steering axle of the material handling equipment are engineered with shock absorber to reduce the impact and maximize the comfort during operation.
The eco-friendly design of the diesel forklift offers full protection to both the user and the environment.
2. Small overall dimension,low centre of gravity, small turning radius, and excellent manoeuvrability.
3. Multiple engines for selection.
Parameters:
| Model | CPCD100 | ||||
| 1 | Feture | Power Type | Diesel | ||
| 2 | Load Capcity | kg | 10000 | ||
| 3 | Load center | mm | 600 | ||
| 4 | Lift height | mm | 3000 | ||
| 5 | Free lift height | mm | 160 | ||
| 6 | Forkk size | L*W*H | mm | 1520×150×75 | |
| 7 | Mast tilt | FR/RR | . | 6/12 | |
| 8 | Min turning Radius | mm | 3950 | ||
| 9 | Min Right angle stacking aisle width | mm | 5708 | ||
| 10 | Min right angle aisle width | mm | 3540 | ||
| 11 | Min ground clearance | mm | 225 | ||
| 12 | Height of overhead guard | mm | 2560 | ||
| 13 | Overhang | mm | 718 | ||
| 14 | Performance | Max driving speed | Full load | km/h | 26 |
| 15 | Max Lifting speed | Full load | mm/s | 370 | |
| 16 | Max drawbar pull | Full load | KN | 60 | |
| 17 | Gradeabiity | % | 15 | ||
| 18 | Dimension | Overall length | Without forks | mm | 4258 |
| 19 | Over width | mm | 2245 | ||
| 20 | Height mast lifted(with backrest) | mm | 4325 | ||
| 21 | Height mast lowered | mm | 2845 | ||
| 22 | Chassis | Tyre | Front | 9.00-20-14PR | |
| 23 | Rear | 9.00-20-15PR | |||
| 24 | Wheelbase | mm | 2800 | ||
| 25 | Tread | FR/RR | mm | 1600/1700 | |
| 26 | Self weight | Without load | Kg | 12980 | |
| 27 | Drive | Battery | Voltage / Capacity | V/Ah | 24/160 |
| 28 | Engine | Model | CA6110/125-JHG10 | ||
| 29 | Rated Power | kw/r.p.m | 83/2200 | ||
| 30 | Rated Torque | Nm/r.p.m | 432/1300 | ||
| 31 | Bore * STROKE | mm | 110×125 | ||
| 32 | No.of Cylinder | 6 | |||
| 33 | Displacement | L | 7.127 | ||
| 34 | Fuel tank capacity | L | 120 | ||
| 35 | Transmission | 2/2manual shift | |||
| 36 | Operating Pressure | Mpa | 19.5 | ||
| 37 | Supplement | Tire type (FR/RR) | Pneumatic | ||
| 38 | Numbers of wheels | pcs | 4/2 | ||
| 39 | lowering speed (full load) | mm/s | 540 | ||
| 40 | Lowering speed ( unload) | mm/s | 470 | ||
| 41 | Axle load distribution (full load) (FR/RR) | kg | 11682/1298 | ||
| 42 | Axle load distribution (unload) (FR/RR) | kg | 5192/7788 | ||
Feartures:
Loading into the 40HC container, disassemble the mast
