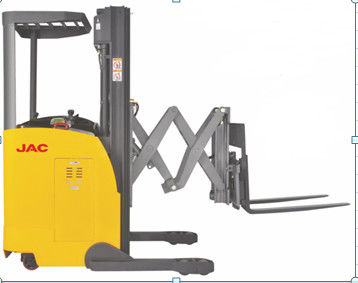

1500kg Load Capacity Electric Reach Truck Forklift With Double Scissor

China 1500kg Load Capacity Electric Reach Truck Forklift With Double Scissor supplier

Large Image :  1500kg Load Capacity Electric Reach Truck Forklift With Double Scissor

Product Details:

Place of Origin: CHINA
Brand Name: JAC
Certification: CE,ISO9001,ISO14001,OHSAS18001
Model Number: CQDH15C

Payment & Shipping Terms:

Minimum Order Quantity: 1UNIT
Price: within negotiable
Delivery Time: About 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000UNITS/MONTH
Contact Now
Detailed Product Description
Load Capacity: 1500KGS Warranty: One Year
Power: Electricity Color: Red Or Yellow
Lift Height: 3.5m-6m Controller: PG Or Curtis
Free Lift: 1825 Mm Turning Radius: 1718 Mm

Battery Powered Fork Reach Truck, Seated Truck With Load Capacity 1500kg , Reach Truck With Double Scissors , Red / Yellow Color





SAFETY AND STABILITY:

• Emergency power disconnect.Two sides-way battery with roll-out system is very convenient to replace batteries.
• Damping cushion for low-noise operation.
• Built-in pressure relief valve protects the trucks from overloads.

• Equipped with adjustable hand-rest, adapted to different operator.
• Multi-function display: battery state, hour meter, fault indicator etc.
• Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.
• Stepless speed control Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.



SERVICEABILITY:
• Low battery protection setting prolongs the battery use time.

• The back cover is easy to open for maintenance and adjustment of parts of valve, oil tube and electronic parts.
• CANbus technology reduces wiring complexity and increase reliability.
• All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.


STRUCTURAL:
•The Scissor Reach Forks is operated by electric controller, which makes operation stable and no impact.

Low Center of Gravity ensures the stable operation.
• Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.



Parameters:

Model Name   CQDH15C ( with double scissors)
Drive type   battery battery
Load capacity/Rated load Q(kg) 1000 1000
Load centre distance c(mm) 500 500
Load distance, centre of drive axle fork x(mm) 159 135
Tyre size, front mm 280×82+160×60 280×82+160×60
Tyre size, rear mm 125×82(4) 125×82(4)
Wheels, number front rear(x=driven wheels)   1+2 1+2
Tilt of mast/fork carriage forward/backward) Grad 2/5 2/5
Height, mast lowered h1(mm) 2375 2125 2625 2675 2345 2185 2505
Free lift h2(mm) ~ ~ ~ 2000 1700 1575 1825
Max. lift height h3(mm) 3500 3000 4000 4500 5000 5500 6000
Height, mast extended h4(mm) 4535 4035 5035 7035 6035 5535 6535
Height of overhead guard h6(mm) 2246 2246
Overall width b1/b2(mm) 1308 /1040 1370/1040 1308/1040
Overall length l1(mm) 2585 2609
Length to face of forks l2(mm) 1515 1539
Fork Dimension s/e/l(mm) 35/100/1070 35/100/1070
Reach distance l4(mm) 1200 1200
Fork height, lowered h8(mm) 130 130
Distance of “X” (see below diagram) mm 350 350
Overall length (excluding the fork) mm 1868 1868
Ground clearance, centre of wheelbase m2(mm) 65 65
Aisle width for pallets 1000×1200 crossways Ast(mm) 2951 2971
Aisle width for pallets 800×1200 lengthways Ast(mm) 3034 3056
Turning radius Wa(mm) 1718 1718
Travel speed, laden/unladen Km/h 6.5/7 6.5/7
Lift speed, laden/unladen m/s 0.135/0.16 0.135/0.16
Lowering speed, laden/unladen m/s 0.15/0.12 0.15/0.12
Battery voltage, nominal capacity K5 V/Ah 24/420(560) 24/420(560)
Battery weight kg 450 450
Battery dimension l/w/h mm 770x336X610 770x336X610
Service weight (with battery) kg 2530 2480 2590 3030 2830 2730 2930
