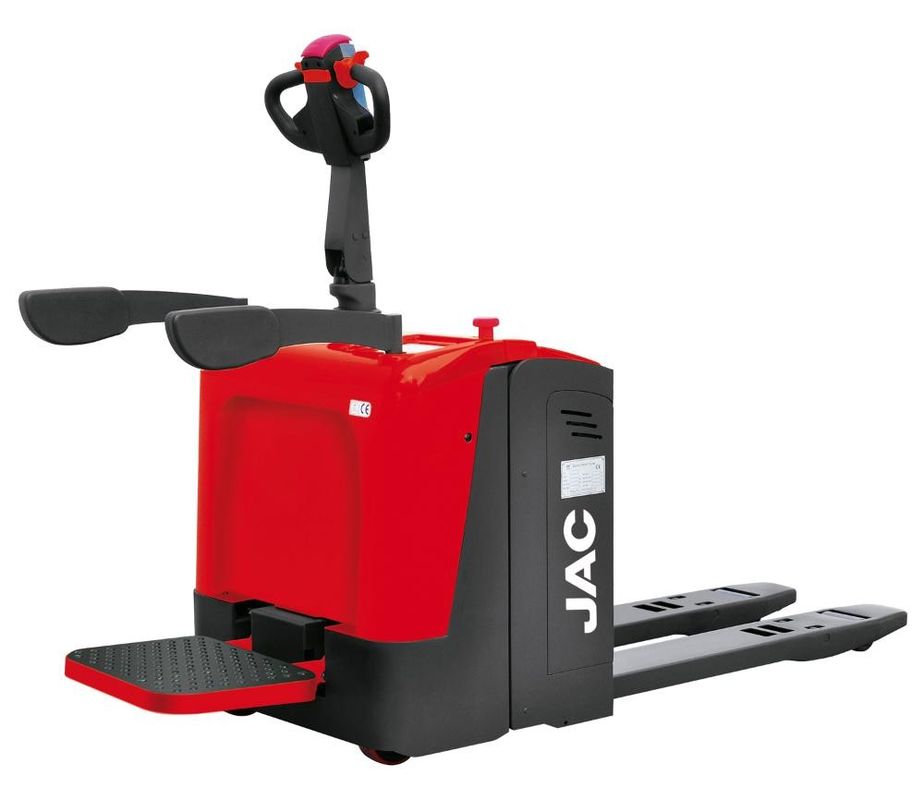

Arm Protection Electric Rider Pallet Truck With 2000KG Loading Capacity

Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:CBD20R
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/MONTH
Product Details
Highlight:

powered pallet truck

,

electric walkie pallet jack

,

electric power pallet jack
Load Capacity: 2000KG
Warranty: One Year
Power: Electricity
Color: Red Or Yellow
Controller: AC
Fork Size: 53x180x1100
Product Description

Rider Pallet Truck With Load Capacity 2 Ton , Stand-on Type , EconomicType , Optional Red Or Yellow Color





      Advantage:

  1. The handle of the electric pallet truck is equipped with emergency switch.
  2. The electricity quantity and the working hours can be displayed on the screen.
  3. An emergency power-off switch is available with this electric stacker
  4. Low-speed travel switch ensures high safety of the electric pallet.
  5. Low battery protection device for the pallet lift truck prolongs the lifespan of the battery.
  6. Canbus technology simplifies wiring system and increases reliability of the warehouse equipment.
  7. Hall element reduces the abrasion and prolongs the service life of the component.
  8. The drive axle is equipped with lubricating nozzle and sleeve.
  9. Solid steel housing can be easily and conveniently opened for maintenance.


Parameters:

Model 　 CBD20R-III
Load capacity Q(kg) 2000
Load centre distance c(mm) 600
Load distance, centre of drive axle to fork x(mm) 820/870/940
Fork height, lowered h13(mm) 85
Tyre size, front mm Φ250×80
Tyre size, rear mm Φ80×70
Additional wheels(dimensions) mm Φ127×57
Wheels, number front rear(x = driven wheels) 　 1x+2/4
Max. lift height h3(mm) 120
Height of tiller in drive position min./ max. h14(mm) 1120/1320
Overall length l1(mm) 1767/1817/1887
Length to face of forks l2(mm) 705
Overall width b1(mm) 773
Fork dimensions s/e/l(mm) 53x180x1100(1150/1220)
Width overall forks b5(mm) 520/550/650/685
Aisle width for pallets 1000×1200 crossways Ast(mm) 2000/2050/2120
Aisle width for pallets 800×1200 lengthways Ast(mm) 2100/2100/2120
Turning radius Wa(mm) 1510/1560/1630
Travel speed, laden/ unladen km/h 7/7.1
Battery voltage,nominal capacity K5 V/Ah 24/200
Battery dimensions l/w/h mm 637x195x630
Battery weight kg 160
Service weight (with battery) kg 660



Arm Protection Electric Rider Pallet Truck With 2000KG Loading Capacity 0    Arm Protection Electric Rider Pallet Truck With 2000KG Loading Capacity 1
    Arm Protection Electric Rider Pallet Truck With 2000KG Loading Capacity 2               Arm Protection Electric Rider Pallet Truck With 2000KG Loading Capacity 3

 Arm Protection Electric Rider Pallet Truck With 2000KG Loading Capacity 4                Arm Protection Electric Rider Pallet Truck With 2000KG Loading Capacity 5
