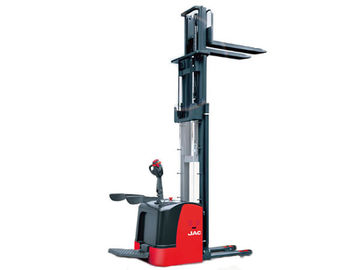

1.2 Ton Capacity Electric Stacker Forklift / Warehouse Electric Lift Pallet Stacker
Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:CDDW12-III
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/MONTH
Product Details
Highlight:
electric pallet truck stacker
,walk behind pallet stacker
Load Capacity:
1200KG
Warranty:
One Year
Power:
Electricity
Color:
Red Or Yellow
Lift Height:
1.6m-3.3m
Product Description
Walking Electric Stacker Truck , Electric Lift Pallet Stacker , Warehouse Indoor Forklift , Load Capacity 1.2 Ton
1. Emergency power-off button and low-speed travel switch are available with this electric stacker
2. Automatic deceleration function makes the operation of the product safer
3. The built-in unloading valve effectively prevents the material handling equipment from overtoad
Parameters:
| Model | CDDW12-Ⅲ | |
| Load capacity | Q(kg) | 1200 |
| Load centre distance | c(mm) | 500 |
| Load distance, centre of drive axle to fork | x(mm) | 697 |
| Fork height, lowered | h13(mm) | 90 |
| Tyre size, front | mm | φ250×70 |
| Tyre size, rear | mm | φ80×70 |
| Additional wheels(dimensions) | mm | φ150×60 |
| Wheels, number front rear(x=driven wheels) | 1x+1/4 | |
| Height, mast lowered | h1(mm) | 2087/1837/2087/2237 |
| Free lift(option 2500~3500mm) | h2(mm) | ~ |
| Max. lift height | h3(mm) | 1600/2500/3000/3300 |
| Height,mast extended | h4(mm) | 2087/3087/3587/3887 |
| Height of tiller in drive position min./max. | h14(mm) | 670/1300 |
| Overall width | b1(mm) | 1965 |
| Overall length | l1(mm) | 792 |
| Length to face of forks | l2(mm) | 820 |
| Fork dimensions | s/e/l(mm) | 60/170/1070(1150) |
| Width overall forks | b5(mm) | 570/695 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2370 |
| Turning radius | Wa(mm) | 1525 |
| Travel speed, laden/unladen | Km/h | 5.3/5.6 |
| Lift speed, laden/unladen | m/s | 0.06/0.13 |
| Lowering speed, laden/unladen | m/s | 0.13/0.10 |
| Battery voltage,nominal capacity K5(Duplex Mast) | V/Ah | 24/120 |
| Battery voltage,nominal capacity K5(Triplex Mast) | V/Ah | ~ |
| Battery weight | kg | 90 |
| Battery dimensions l/w/h | mm | 753x178x240 |
| Service weight(with battery) | kg | 750/770/790/815 |
