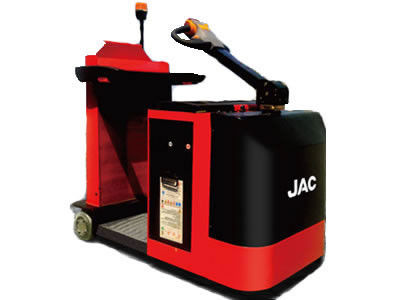

Electricity Industrial Tow Tractors Traction Weight 3 Ton With Traction Bolt
Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:QDD30
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/MONTH
Product Details
Highlight:
4 wheel platform truck
,tug tow tractor
Traction Weight:
3000KGS
Warranty:
One Year
Power:
Electricity
Color:
Red Or Yellow
Product Description
Industrial Tow Tractors , Traction Weight 3 ton,With Traction Bolt
Advantage:
1. The electric tow tractor, usually used as an industrial towing vehicle, is designed to balance the following contradicting requirements, on the one hand it should feature compact size due to narrow working aisles and other infrastructural bottlenecks, on the other hand it should also provide a high towing capacity, especially for use on ramps.
2. It is a piece of material handling equipment that is built to provide great maneuverability, reliability and ruggedness to meet all your demanding applications.
Parameters:
| Model | QDD30 | |
| Power type | Battery | |
| Rated traction weight (60 minutes rated) | kg | 3000 |
| Draw bar center height | h1/h2(mm) | 280/350 |
| Weight | kg | 1080 |
| Axle loading, front | kg | 350 |
| Axle loading, rear | kg | 680 |
| Tyre number front/rear | X=Driven wheels | 1/2X |
| Tyre size, front | solid rubber | 15*41/2-8 |
| Tyre size, rear | solid rubber | 15*41/2-8 |
| Rear hanging distance | L2(mm) | 350 |
| Seat height | h3(mm) | 850 |
| Overall length | L(mm) | 1720 |
| Overall width | W(mm) | 970 |
| Overall height | H(mm) | 1250 |
| Min. ground height | X(mm) | 90 |
| Min. turning radius | Wa(mm) | 1520 |
| Travel speed, laden/unladen | km/h | 7 |
| Wheel base | L1(mm) | 1170 |
| Max. gradeability(laden/unladen) | 6/15 | |
| Battery voltage, nominal capacity K5 | V/Ah | 48/270 |
| Battery weight | kg | 400 |
| Traction bolt | Traction bolt |
