CE Standard Electric Tow Vehicles / Electric Tow Tug With 5.0 Ton Traction Weight
Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:QDD50
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/MONTH
Product Details
Highlight:
4 wheel platform truck
,tug tow tractor
Traction Weight:
5000KGS
Warranty:
One Year
Power:
Electricity
Color:
Red Or Yellow
Product Description

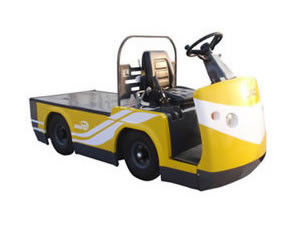

JAC Electric Tow Tractor / 5.0 Ton Traction Weight , Electric Tow Tugs , Red or Yellow Color
Advantage:
1.The integrated type pedal pad has high elasticity, good slip resistance, and nice appearance.
2.The JAC tractor comes with aluminum control arm The reasonable design enables convenient operation and relieves the fatigue of worker
3.Integrated type operating handle makes for convenient and easy control on the industrial tractor.
4.CURTIS AC control system
Parameters:
| Model | QDD50 | |
| Power | Battery | |
| Rated traction weight (60 minutes rated) | kg | 5000 |
| Draw bar center height | h1/h2(mm) | 280/350 |
| Weight | kg | 1240 |
| Axle loading, front | kg | 410 |
| Axle loading, rear | kg | 830 |
| Tyre number front/rear | X=Driven wheels | 1/2X |
| Tyre size, front | solid rubber | 15*41/2-8 |
| Tyre size, rear | solid rubber | 4.00-8 |
| Rear hanging distance | L2(mm) | 500 |
| Seat height | h3(mm) | 910 |
| Overall length | L(mm) | 1975 |
| Overall width | W(mm) | 1100 |
| Overall height | H(mm) | 1250 |
| Min. ground height | X(mm) | 90 |
| Min. turning radius | Wa(mm) | 1650 |
| Travel speed, laden/unladen | km/h | 8 |
| Wheel base | L1(mm) | 1280 |
| Max. gradeability(laden/unladen) | 6/15 | |
| Battery voltage, nominal capacity K5 | V/Ah | 48/360 |
| Battery weight | kg | 530 |
| Traction bolt | Traction bolt |
