Product Details:
Payment & Shipping Terms:
|
| Traction Weight: | 6000KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |

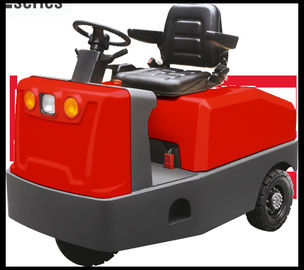

Q Series Electric Tow Vehicles , CE Approval , Electric Tow Tractor With Traction Power 6000 KG , Red or Yellow Color
Advantage:
1. The material handling device is designed with handrail for commercial vehicle and leathery soft backrest. The upscale design improves the comfort during operation and relieves the fatigue of the operator
2. Standard warning light increases the safety of the JAC tractor
3. The height and diameter of the adjustable drawbar pin can be customized based on customer demand.
4. 24V-280AH storage battery
Parameters:
| Model | QDD60 | |
| Drive type | Battery | |
| Rated traction weight (60 minutes rated) | kg | 6000 |
| Draw bar center height | h1/h2(mm) | 280/350 |
| Weight | kg | 1360 |
| Axle loading, front | kg | 450 |
| Axle loading, rear | kg | 910 |
| Tyre number front/rear | X=Driven wheels | 1/2X |
| Tyre size, front | solid rubber | 15*41/2-8 |
| Tyre size, rear | solid rubber | 4.00-8 |
| Rear hanging distance | L2(mm) | 500 |
| Seat height | h3(mm) | 910 |
| Overall length | L(mm) | 1975 |
| Overall width | W(mm) | 1100 |
| Overall height | H(mm) | 1250 |
| Min. ground height | X(mm) | 90 |
| Min. turning radius | Wa(mm) | 1650 |
| Travel speed, laden/unladen | km/h | 7 |
| Wheel base | L1(mm) | 1280 |
| Max. gradeability(laden/unladen) | 6/15 | |
| Battery voltage, nominal capacity K5 | V/Ah | 48/400 |
| Battery weight | kg | 610 |
| Traction bolt | Traction bolt |
