Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity

I'm Online Chat Now

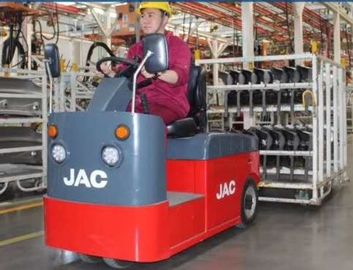

Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity

Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity
Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity

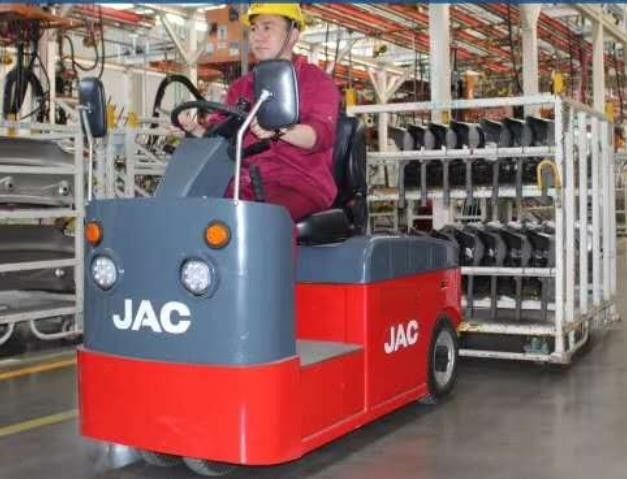

Large Image :  Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity

Product Details:
Place of Origin: CHINA
Brand Name: JAC
Certification: CE,ISO9001,ISO14001,OHSAS18001
Model Number: QDD30E
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: negotiable
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000UNITS/MONTH
Detailed Product Description
Traction Weight: 3000KG Warranty: One Year
Power: Electricity Color: Red Or Yellow
Highlight:

4 wheel platform truck

,

tug tow tractor

Electric Tow Truck​ Wth Traction Weight 3.0 Ton , Economic Type , AC Motor





Advantages:

● New large-screen display instrument provides all kinds of information more clearly and directly for the operator.
● New opened high-range steering design, light to steering and easy to maintain.

● Side-way battery (optional)
● The parking brake adopts electromagnetic brake. It locks the truck automatically after parking, which avoids the sliding danger of the truck caused by forgetting to use the hand brake.
● New advanced car outline, completely opened cover, distinguished and beautiful.
● Full AC electric system has brake-releasing function, more easy and comfortable to operate; Maintenance-free motor completely solves the problem of DC motor carbon brush.



Parameters:

Model   QDD30E(AC)
Drive type   Battery
Rated traction weight (60 minutes rated) kg 3000
Draw bar center height h1/h2(mm) 280/350
Weight kg 780
Axle loading, front kg 310
Axle loading, rear kg 470
Tyre number front/rear X=Driven wheels 1/2X
Tyre size, front solid rubber 15*41/2-8
Tyre size, rear solid rubber 15*41/2-8
Rear hanging distance L2(mm) 382
Seat height h3(mm) 910
Overall length L(mm) 1720
Overall width W(mm) 968
Overall height H(mm) 1270
Min. ground height X(mm) 90
Min. turning radius Wa(mm) 1500
Travel speed(laden/unladen) km/h 6.5
Wheel base L1(mm) 1055
Max. gradeability(laden/unladen)   7/12
Battery voltage, nominal capacity K5 V/Ah 36/250
Battery weight kg 250
Traction bolt   Traction bolt






Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity 0Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity 1

Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity 2Industrial Electric Tow Tractor Compact Structure 3000 Kg Loading Capacity 3
