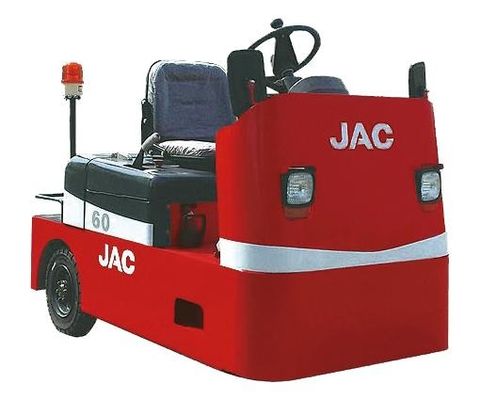

High Performance 4 Wheel Platform Truck AC Power System 6000KG Traction Weight

Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:QDD60
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/MONTH
Product Details
Highlight:

4 wheel platform truck

,

tug tow tractor
Traction Weight: 6000KG
Warranty: One Year
Power: Electricity
Color: Red Or Yellow
Product Description

Electric Tow Tractor, AC Power System , Traction Weight 6 Ton , Red or Yellow Color





Model Advantages:

● New opened high-range steering design, light to steering and easy to maintain.
● The parking brake adopts electromagnetic brake. It locks the truck automatically after parking, which avoids the sliding danger of the truck caused by forgetting to use the hand brake.
● New advanced car outline, completely opened cover, distinguished and beautiful.
● Full AC electric system has brake-releasing function, more easy and comfortable to operate; Maintenance-free motor completely solves the problem of DC motor carbon brush.
● New large-screen display instrument provides all kinds of information more clearly and directly for the operator.
● Side-way battery (optional)



Model Parameters:

Model Name 　 QDD60(AC)
Drive type 　 Battery
Rated traction weight (60 minutes rated) kg 6000
Draw bar center height h1/h2(mm) 280/350
Weight kg 1280
Axle loading, front kg 450
Axle loading, rear kg 830
Tyre number front/rear X=Driven wheels 1/2X
Tyre size, front solid rubber 15*41/2-8
Tyre size, rear solid rubber 4.00-8
Rear hanging distance L2(mm) 450
Seat height h3(mm) 910
Overall length L(mm) 1940
Overall width W(mm) 1100
Overall height H(mm) 1250
Min. ground height X(mm) 100
Min. turning radius Wa(mm) 1650
Travel speed(laden/unladen) km/h 7/14
Wheel base L1(mm) 1250
Max. gradeability(laden/unladen) 　 6/15
Battery voltage, nominal capacity K5 V/Ah 48/400
Battery weight kg 610
Traction bolt 　 Traction bolt

High Performance 4 Wheel Platform Truck AC Power System 6000KG Traction Weight 0High Performance 4 Wheel Platform Truck AC Power System 6000KG Traction Weight 1

High Performance 4 Wheel Platform Truck AC Power System 6000KG Traction Weight 2High Performance 4 Wheel Platform Truck AC Power System 6000KG Traction Weight 3
