Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 5000KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Manual | Color: | Red Or Yellow |

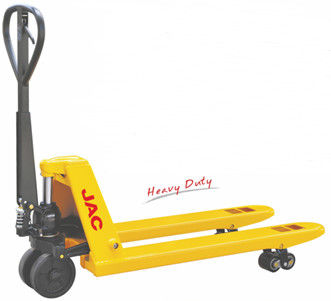

5 Ton Handle Pallet Jack , Heavy Duty Hydraulic Pallet Truck , Red or Yellow Color
Advantages:
• High reliability and long service lift of 5 years.
• Double lifting speed when loads under 600kg,which turns back to regular speed when above it.
• Impact free lifting ensures safety of cargo loading.
• The Lifting system is equipped with overloading protection valve to ensure the safe operation.
• The utilized structural design guarantees the convenience of assembling and disassembling.
• Light-weight fork frame,made from high rigidity steel plate.
• Compact appearance,innovative separated Rock Arm,ensure the whole truck evenly pressed.
• There is a finger hole in the connection of handle and pump,easy to assemble.
Parameters:
| Model | WB | ||
| Capacity | Q(kg) | 5000 | 5000 |
| Lowered fork height | h13(mm) | 88 | 78 |
| Steering wheel | mm | φ200 | φ180 |
| Fork wheel single | mm | ~ | ~ |
| Fork wheel tandem | mm | φ85×80 | φ75×80 |
| Max. lift height | h3(mm) | 205 | 195 |
| Total height | h14(mm) | 1253 | 1243 |
| Overall length | l1(mm) | 1544/1614 | 1544/1614 |
| Fork length | l(mm) | 1150/1220 | 1150/1220 |
| Width overall forks | b5(mm) | 550/685 | 550/685 |
| Ground clearance,centre of wheelbase | m2(mm) | 28 | 18 |

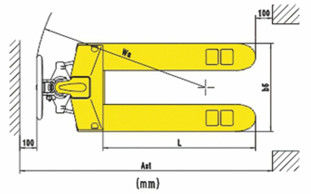

| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1744/1814 | 1744/1814 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1794/1814 | 1794/1814 |
| Turning radius | Wa(mm) | 1300/1370 | 1300/1370 |
| Service weight | kg | 103-110 | 103-110 |
