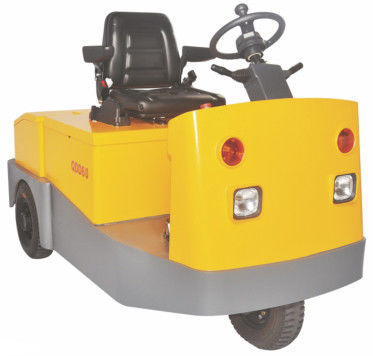

Adjustable Steering Electric Tow Vehicles Good Stability CE Approval

I'm Online Chat Now

Adjustable Steering Electric Tow Vehicles Good Stability CE Approval

Adjustable Steering Electric Tow Vehicles Good Stability CE Approval
Adjustable Steering Electric Tow Vehicles Good Stability CE Approval

Large Image :  Adjustable Steering Electric Tow Vehicles Good Stability CE Approval

Product Details:
Place of Origin: CHINA
Brand Name: JAC
Certification: CE,ISO9001,ISO14001,OHSAS18001
Model Number: QDD60
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: negotiable
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000UNITS/MONTH
Detailed Product Description
Traction Weight: 6000KGS Warranty: One Year
Power: Electricity Color: Red Or Yellow
Highlight:

4 wheel platform truck

,

electric tow tug

Q Series Electric Tow Vehicles , CE Approval , Electric Tow Tractor With Traction Power 6000 KG , Red or Yellow Color





Advantage:
● ”H”type axle design gives a good stability.
● Batteries located in the lowest part of frame, low center of gravity ensures excellent stability.
● Multi-function display: battery status, hour meter, error code etc.
● The application of hand brake and hydraulic brake improve the safety level.
● Easy-open back cover to open for maintenance and replacement of parts such as drive wheel, oil tube, accelerator, controller etc.



Parameters:

Model   QDD60
Drive type   Battery
Rated traction weight (60 minutes rated) kg 6000
Draw bar center height h1/h2(mm) 280/350
Weight kg 1360
Axle loading, front kg 450
Axle loading, rear kg 910
Tyre number front/rear X=Driven wheels 1/2X
Tyre size, front solid rubber 15*41/2-8
Tyre size, rear solid rubber 4.00-8
Rear hanging distance L2(mm) 500
Seat height h3(mm) 910
Overall length L(mm) 1975
Overall width W(mm) 1100
Overall height H(mm) 1250
Min. ground height X(mm) 90
Min. turning radius Wa(mm) 1650
Travel speed, laden/unladen km/h 7
Wheel base L1(mm) 1280
Max. gradeability(laden/unladen)   6/15
Battery voltage, nominal capacity K5 V/Ah 48/400
Battery weight kg 610
Traction bolt   Traction bolt


Adjustable Steering Electric Tow Vehicles Good Stability CE Approval 0Adjustable Steering Electric Tow Vehicles Good Stability CE Approval 1
Adjustable Steering Electric Tow Vehicles Good Stability CE Approval 2Adjustable Steering Electric Tow Vehicles Good Stability CE Approval 3

Adjustable Steering Electric Tow Vehicles Good Stability CE Approval 4Adjustable Steering Electric Tow Vehicles Good Stability CE Approval 5
