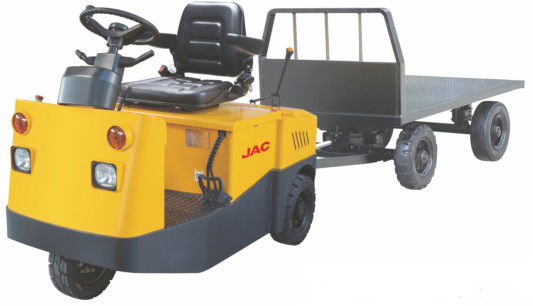

JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification

I'm Online Chat Now

JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification

JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification
JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification

Large Image :  JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification

Product Details:
Place of Origin: CHINA
Brand Name: JAC
Certification: CE,ISO9001,ISO14001,OHSAS18001
Model Number: QDD50
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: negotiable
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000UNITS/MONTH
Detailed Product Description
Traction Weight: 5000KGS Warranty: One Year
Power: Electricity Color: Red Or Yellow
Highlight:

4 wheel platform truck

,

tug tow tractor

JAC Electric Tow Tractor / 5.0 Ton Traction Weight , Electric Tow Tugs , Red or Yellow Color





Advantage:
● ”H”type axle design gives a good stability.
● Batteries located in the lowest part of frame, low center of gravity ensures excellent stability.
● Multi-function display: battery status, hour meter, error code etc.
● The application of hand brake and hydraulic brake improve the safety level.
● Easy-open back cover to open for maintenance and replacement of parts such as drive wheel, oil tube, accelerator, controller etc.



Parameters:

Model   QDD50
Drive type   Battery
Rated traction weight (60 minutes rated) kg 5000
Draw bar center height h1/h2(mm) 280/350
Weight kg 1240
Axle loading, front kg 410
Axle loading, rear kg 830
Tyre number front/rear X=Driven wheels 1/2X
Tyre size, front solid rubber 15*41/2-8
Tyre size, rear solid rubber 4.00-8
Rear hanging distance L2(mm) 500
Seat height h3(mm) 910
Overall length L(mm) 1975
Overall width W(mm) 1100
Overall height H(mm) 1250
Min. ground height X(mm) 90
Min. turning radius Wa(mm) 1650
Travel speed, laden/unladen km/h 8
Wheel base L1(mm) 1280
Max. gradeability(laden/unladen)   6/15
Battery voltage, nominal capacity K5 V/Ah 48/360
Battery weight kg 530
Traction bolt   Traction bolt


JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification 0JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification 1

JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification 2JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification 3

JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification 4JAC Electric Tow Tractor 5.0 Ton Traction Weight , Electric Tow Tug CE Certification 5
