High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift

Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:CQD20H(EPS)
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/MONTH
Product Details
Highlight:

narrow aisle reach forklift

,

warehouse reach truck
Loading Capacity: 2000KG
Warranty: One Year
Power: Electricity
Color: Red Or Yellow
Lift Height: 8-12m
Controller: Curtis Or PG
Product Description

Electric Reach Lift Truck , Warehouse lifting Equipment , Load Capacity 2 Ton , EPS , Max Lift Height 12 M





CQD15(EPS)Reach Trucks is innovation type based on CQD15M, which with heavy duty chassis, extra large compartment and unequalled visibility. Which can excels bigger load capacity a high reach elevations, compact cabin design can be used in drive in racking, the operator can work more effectively.
Advantages:
Standard
• AC control system.
• Powering steering system(EPS).
• Muti-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
• Manual multi valve.
• Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
• German ZF brand gear box.
• Adjustable steering wheel.
• With traveling speed limited device when forks at high level.
• Electronic height limited device.



Parameters:



Model 　 CQD20H(EPS) CQD20H(EPS)
Rated load Q(kg) 2000 2000

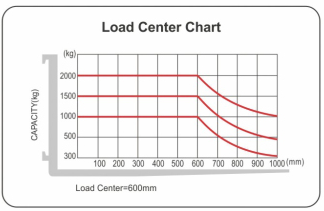

Load centre C(mm) 600 600
Service weight kg 4240 4840
Drive wheel dimension mm φ406×152 φ406×152
Fork wheel dimension mm φ340×134 φ340×134

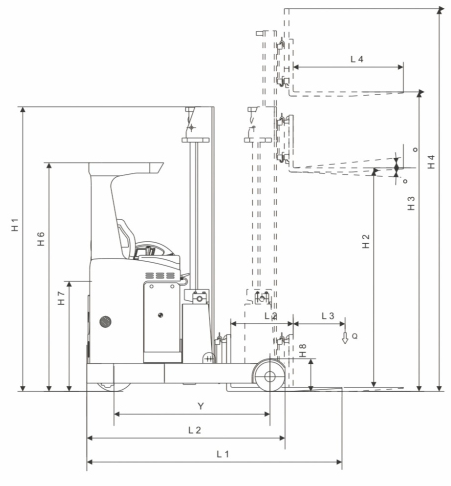

Height,mast lowered h1(mm) 3390/3590/3890 4190/4490/4790
Free lift h2(mm) 2700/2900/3200 3600/3900/4200
Max.lift height h3(mm) 8000/8600/9500 10200/11100/12000
Height,mast extended h4(mm) 8800/9400/10300 11000/11900/12800
Height of overhead guard(cabin) h6(mm) 2200 2200
Seat height h7(mm) 1060 1060
Height of crura h8(mm) 355 355
Fork dimensions s/e/l(mm) 40/120/1070 40/120/1070
Overall length l1(mm) 2510 2510
Reach distance l4(mm) 600 700
Length(barring fork) l2(mm) 1950 2050

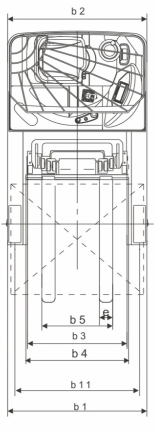

Overall width b1(mm) 1510 1510
Front width b2(mm) 1260 1260
Aisle width for pallets 1000×1200 crossways Ast(mm) 2920 2920
Aisle width for pallets 800×1200 lengthways Ast(mm) 2980 2980
Turning radius Wa(mm) 1820 1920
Travel speed ,laden/unladen Km/h 9.3 9
Lift speed, laden/unladen mm/s 240/300 240/300
Lowering speed, laden/unladen mm/s 500/400 500/400
Battery dimension mm 1220x344x727 1220x344x727
Battery capacity AH 500 500
Battery voltage V 48 48
Battery weight kg 860 860






High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift 0                    High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift 1

 High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift 2 High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift 3

High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift 4High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift 5

High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift 6High Reach Warehouse Reach Truck , Container Handling Reach Type Forklift 7
