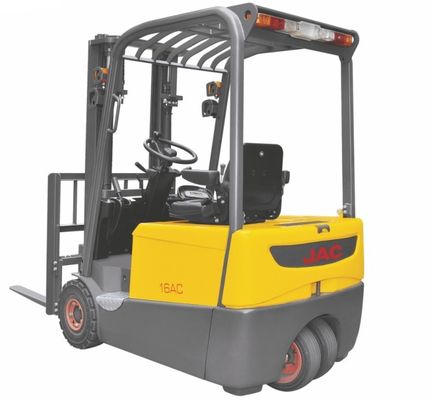

2 Ton 2000 Kg Three Wheel Electric Forklift , Alternating Current Electric Warehouse Forklift Lifting Equipment
four wheel electric forklift
,electric counterbalance forklift
2 Ton 2000 Kg Electric Three Wheel Forklift , Alternating Current, Warehouse Forklift, Smaller Turning Radius, Large Capacity Equipment
Advantages:
SAFETY AND STABLITY
· Germany imported driving axle.
· AC control system CURTIS with sensitive reaction.
·Wet disk brake can make the forklift break stably, ensures high durability and safety.
·Very small turning radius is only 1552mm and minimum right angle stacking aisle is only 3220mm.
· Multifunctional display with using time , fault code, battery status, forklift running information.
·AC motor with regenerative braking.
·Three running modes according to different needs: low speed, moderate speed and high speed.
·AC driving motor without brush, free of maintenance.
ERGONOMICS
· With two step pedal easy to get into the driving cab.
·The design of the controlling lever position fit the Ergonomic principles which can reduce the driver’s fatigue.
· clearly and wide view mast with good visibility.
·Emergency power cut off plug for emergency stop.
· Integrated light switch and steering wheel. 4. ABS instrument board in the driving-box is durable and beautiful.
· Adjustable steering wheel column , the driver can adjust the position according to his need.
SERVICE ABILITY
·Easy maintained controller and steering potentiometer.
·Over discharge protecting system: While the battery discharges less than 20%, the instrument warming light will light.
·Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.
·Lifting and driving AC motors without carbon brush free to maintain, which greatly reduce maintenance cost. And they all adopt external encoder, so the maintenance and service is more convenient.
·Side way battery box is easy to change battery. it is safety and convenient.
· maintenance free wet disk brake.
Parameters:
| Model | CPD20SA-20 | |
| Drive | Dual Front Drive Wheel | |
| Operation type | seated | |
| Load capacity/rated load | Q(kg) | 2000 |
| Load center distance | c(mm) | 500 |
| Load distance,center of drive axle to fork | x(mm) | 358 |
| Wheelbase | y(mm) | 1465 |
| Service weight (with battery) | kg | 3450 |
| Axle loading,laden front/rear | kg | 4469/981 |
| Axle loading,unladen front/rear | kg | 1625/1997 |
| Tyres:solid rubber, superelastic, pneumatic,polyurethane | super elastic solid tires | |
| Tyre size, front | 200/50-10 | |
| Tyre size, rear | 140/55-9 | |
| Wheels,number front rear(x=driven wheels) | 2x/2 | |
| Tread,front | b10(mm) | 937 |
| Tread,rear | b11(mm) | 188 |
| Tilt of mast/fork carriage forward/backward | . | 3/6 |
| Height,mast lowered | h1(mm) | 2000-2660 |
| Free lift | h2(mm) | option |
| Lift Height | h3(mm) | 3000-6200 |
| Height,mast extended | h4(mm) | 4050-7250 |
| Height of overhead guard(cabin) | h6(mm) | 2005 |
| Seat height/stand height | h7(mm) | 938 |
| Coupling height | h10(mm) | 560 |
| Overall length | l1(mm) | 3100 |
| Length to face of forks | l2(mm) | 2030 |
| Overall width | b1(mm) | 1130 |
| Fork dimensions | s/e/l(mm) | 40/120/1070 |
| Fork carriage DIN 15173,class/type A,B | 2A | |
| Fork-carriage width | b3(mm) | 1088 |
| Ground clearance,laden,below mast | m1(mm) | 90 |
| Ground clearance,centre of wheelbase | m2(mm) | 100 |
| Aisle width for pallets 1000*1200 cross-ways | Ast(mm) | 3200 |
| Aisle width for pallets 800*1200 length-ways | Ast(mm) | 3300 |
| Turning radius | Wa(mm) | 1652 |
| Travel speed,laden/unladen | Km/h | 13/13 |
| Lift speed,laden/unladen | mm/s | 250/420 |
| Lowering speed, laden/unladen | mm/s | <600 |
| Max.gradeability,laden/unladen | % | 15/20 |
| Battery voltage,nominal capacity K5 | V/Ah | 48/560(640) |
| Battery weight | kg | 800 |
| Sound level at the driver’s ear acc.to DIN 12053 | dB(A) | 68 |
