High Efficiency Walkie Electric Pallet Truck , 1.5 Ton Capapcity Automatic Pallet Jack Lithium battery compact 1500Kg
powered pallet truck
,electric power pallet jack
Electric Walkie Pallet Truck With Load Capacity From 1.5 Ton , Short Distance Warehouse Forklift , Lithuim Battery

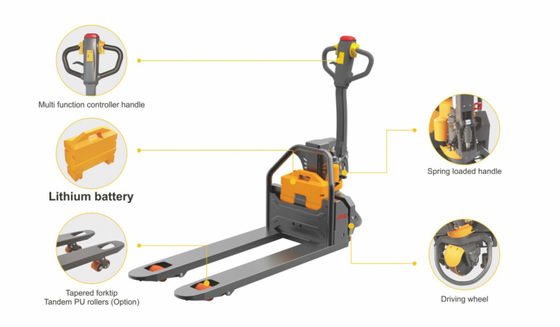

Advantages:
• 48V large capacity maintenance-free lithium battery
• long working time around 6 hours, only need 3 hours to charge.
• Brushless motor, maintenance-free, high efficiency, cost saving
• Small and beautiful, flexible steering, which can successfully enter the narrow space, such as elevators, small super market and narrow aisle
• very easy to exchange battery, 10 seconds replacement of the battery(two groups exchanged battery can be used for 24 hours of continuous work).
• Stepless speed, smooth speed changing.
• Multi-function Control Handle. Incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch which is easy to use
• Compact Vehicle Design, Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.
• Less Wiring, Easy Service. Mechanical and electronic components are easy to change and service.
• Brushless Motor
• Plug-in Battery Design makes it easier to remove and change, no need additional tools or devices.
• Integrated Rocker Arm. The rocker arm is casted in single piece, intensifying the strength and structure.
• Stepless speed control provides better and smoother speed changing. Brushless motor is easy for maintenance.
• Ergonomic Spring-loaded steering handle with comfort grip for reduced operator fatigue.
• Long Tiller with Large Hand Grip for easy and comfortable hold, strain-free operation.
Range of Application:
• Indoor use, light duty work
• Chemical handing and processing facilities
• Warehouses freight handling
• Frozen food storage
• Retail outlets
Parameters:
| Model | CBD15W | |
| Load capacity | Q(kg) | 1500 |
| Load centre distance | c(mm) | 600 |
| Fork height, lowered | h13(mm) | 80 |
| Tyre size, front | mm | Φ250 |
| Tyre size, rear(single) | mm | Φ80 |
| Wheels, number front rear(x = driven wheels) | 1x-2/4 | |
| Max. lift height | h3(mm) | 110 |
| Height of tiller in drive position min./ max. | h14(mm) | 635/1200 |
| Overall length | l1(mm) | 1651/1721 |
| Length to face of forks | l2(mm) | 502 |
| Overall width | b1(mm) | 550/685 |
| Fork dimensions | s/e/l(mm) | 45/160/1150(1220) |
| Width overall forks | b5(mm) | 550/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1850/1920 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1900/1920 |
| Turning radius | Wa(mm) | 1452/1522 |
| Travel speed, laden/ unladen | km/h | 4/4.5 |
| Battery voltage,nominal capacity K5 | V/Ah | 48/20 |
| Battery dimensions l/w/h | mm | 340x130x307 |
| Battery weight | kg | 10 |
| Service weight (with battery) | kg | 145 |
