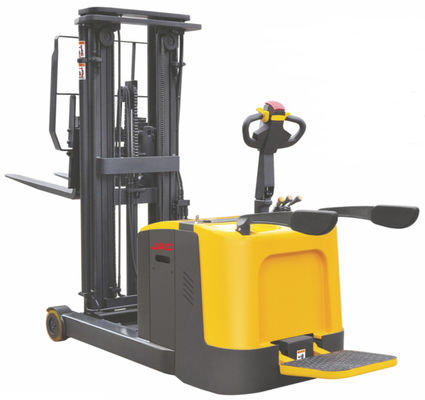

Warehouse Reach Type Jac Forklift 1.5 Ton Stand On Mast Forward Compact Structure

Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:CQD15
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/MONTH
Product Details
Highlight:

electric reach truck

,

narrow aisle reach forklift
Load Capacity: 1500KGS
Warranty: One Year
Power: Electricity
Color: Red Or Yellow
Lift Height: 2.5m-5.6m
Controller: Curtis Or PG
Product Description

Warehouse Electric Reach Stacker Truck With Load Capacity 1.5 Ton , Mast forward / Stand-on Type , Red or Yellow Color





STRUCTURAL:
• Two lifting cylinders placed on outer sides of the mast.
• Germany imported special steel mast.
• Vertical driving wheel, driving efficiency , easy installation & maintenance.
• Compact structure and low gravity.


SAFETY AND EFFICIENCY:
• AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
• Tilting system forks easy for loading and stacking.
• High Storage battery ensures strong and long-lasting power.
• Meter with BDI , prolonging the battery’s using time.
• The braking system combines magnetic brake and regenerative break, greatly prolongs the using lift of friction plate.
• With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
• The adjustable regulator valve can adjust the lowing speed of the masts.


EASY MAINTENANCE:
• Magnet suction for battery cover, easy for installation and maintenance.
• AC controlling system, low noise, less maintenance.



Parameters:

Model 　 CQD15R
Load capacity Q(kg) 1500
Load center c(mm) 500
Load distance x(mm) 520
Tyre size, front mm Φ250×70
Tyre size, rear mm Φ210×85
Balance wheel size mm Φ150×60
Wheels, number front rear ( x=driven wheels) 　 1x+2/2
Mast/ Forks obliquity front/back ° 3/6
Height, mast closed h1(mm) 1880/2118/2400/1953/2128/2298/2495
Free lift (option) h2(mm) 0/0/0/1280/1480/1600/1870
Max. lifting height h3(mm) 2500/3000/3500/4000/4500/5000/5600
Height, mast extended h4(mm) 3500/4000/4500/5000/5500/6000/6600
Height of tiller in drive position min./ max. h14(mm) 1160/1460
Overall length l1(mm) 2250
Length to face of fork l2(mm) 1240
Overall width b1(mm) 990
Fork dimension s/e/l(mm) 35/100/950(1070/1150)
Fork carriage width b3(mm) 220-680
Reach distance l3(mm) 650
Aisle width for pallets 800×1200 length ways Ast(mm) 2750
Turning radius Wa(mm) 1750
Travel speed, laden/ unladen kw/h 6.8/7
Lifting speed, laden/ unladen m/s 0-0.13/0-0.16
Lowering speed, laden/ unladen m/s 0-0.45
Battery volts./ Cap. v/ah 24/270
Battery weight kg 260-320
Battery dimensions (l*w*h) mm 825x213x590
Service weight (with battery) kg 2140






Warehouse Reach Type Jac Forklift 1.5 Ton Stand On Mast Forward Compact Structure 0

Warehouse Reach Type Jac Forklift 1.5 Ton Stand On Mast Forward Compact Structure 1Warehouse Reach Type Jac Forklift 1.5 Ton Stand On Mast Forward Compact Structure 2
