| Loading Capacity: | 1000KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 3m-6.2m |

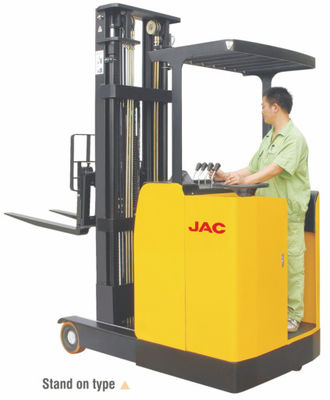

Electric High Reach Lift Truck With Load Capacity 1 Ton , Max Lift Height 6.2m , Standing Type , Optional Red Color
Advantages:
The CQD series Counterbalanced Reach lift truck with innovative design and application-oriented functionality, low noise, no pollution and a small turning radius. Widely used for high-shelves in narrow aisle warehouses, supermarkets, etc.
FEATURES:
• Truck with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in drive- in racks.
• Available in either DC or AC power options.
• For daily maintenance of the battery, you DON’T NEED to hang up the battery box. Simply using a battery handle controller, you can automatically remove and replace the battery box.
• Equipped with two separate floating devices, which enhances stability in terms of structure, reducing weight, and prolonging the working life of the driving wheels.
• Full hydraulic steering system, with integrative design of driving and steering, provides low-effort and flexible power steering.
• Integrated driving and turning systems.
• A fully hydraulic steering system ensures flexible turning, and requires less maintenance.
• Optional high-level video system places a camera in the top skid, allowing the operator enhanced visibility.
• Height selection and height positioning system is a high-level configuration, which with manual and automatic control, for automatic positioning with a keypad, enabling the operator to choose the appropriate lift height (optional).
Parameters:
| Model | CQD10L | |
| Power | battery | |
| Operate type | standing | |
| Capacity /rated load | Q(kg) | 1000 |
| Lift height | h3(mm) | 3000/5000/6200 |
| Load centre distance | c(mm) | 500 |
| Drive wheel | mm | Φ280×100 |
| Fork wheel | mm | Φ250×80 |
| Wheels, number front rear(x=driven wheels) | 3,2 | |
| Tilt of mast/fork carriage forkward/backward | α,β(Grad) | 3,5(mast)/3,5(forks)/3,5(forks) |
| Service weight | kg | 2140/2540/2640 |
| Free lift | h2(mm) | ~/1700/2100 |
| Height,mast lowered | h1(mm) | 2086/2240/2640 |
| Height,mast extended | h4(mm) | 3800/5800/7000 |
| Height of overhead guard(cabin) | h6(mm) | 2200 |
| Seat height/stand height | h7(mm) | 295 |
| Height of crura | h8(mm) | 270 |
| Overall length | l1(mm) | 2360 |
| Length(barring fork) | l2(mm) | 1700 |
| Overall width | b1(mm) | 1020 |
| Fork dimensions | s/e/l(mm) | 35/100/1070 |
| Reach distance | l4(mm) | 600 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2740 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2850 |
| Turning radius | Wa(mm) | 1700 |
| Travel speed,laden/unladen | Km/h | 7/7.2 |
| Lift speed,laden/unladen | m/s | 0.19/0.2 |
| Lowered speed,laden/unladen | m/s | 0.5/0.4 |
| Battery voltage,nominal capacity K5 | V/Ah | 48/400 |
| Battery weight | kg | 550 |
| Battery dimensions l/w/h | mm | 983x404x630 |
