Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 2500KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Liquefied Petroleum Gas | Color: | Red |
| Lift Height: | 3m-6m | Engine Brand: | Nissan |

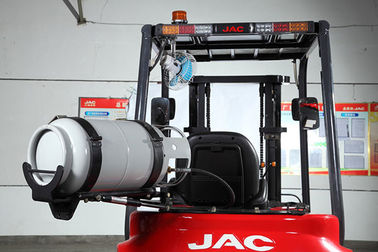

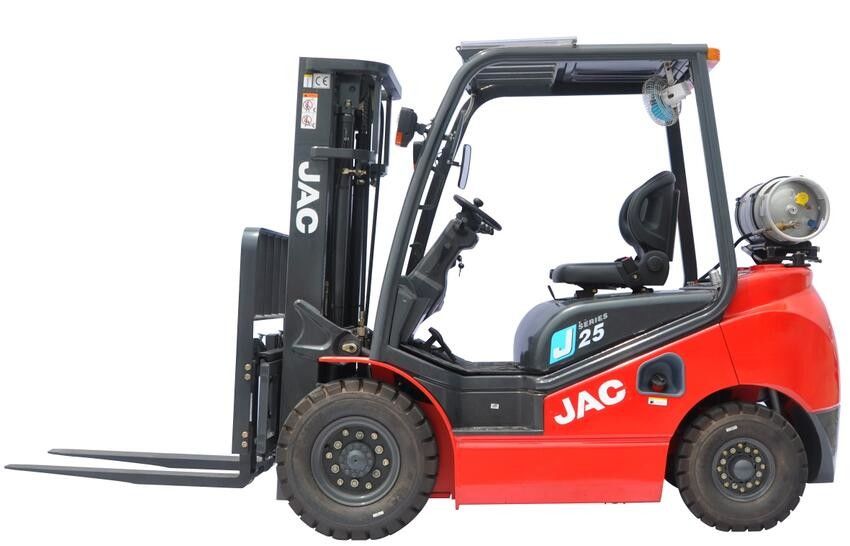

2.5 Ton Liquefied Petroleum Gas Forklift With Optional Nissan Engine , Orange Color
Advantages:
1. The JAC gasoline and LPG forklift is ergonomically designed to be safe, comfortable and efficient to operate as well as to technically meet the demands of local and international customers. This industrial forklift features an adjustable steering wheel and seat and an operating system layout that is convenient and easy to use.
2. The engine is equipped with a suspension shock-absorption device. The steering wheel is easy to maneuver and the low torque steering gear makes pivot steering easy. Different models of our gasoline forklift truck can be configured with various powerful and cost-effective engines, such as the Chinese Guangqing GQ491 engine, Japanese and K25 engine (4 cylinders /37.4kW), all of which meet requirements for high performance, reliability, power, low noise, low emissions, and low fuel consumption.
3. Superior Shell hydraulic oil protects key spare parts and extends the service life.
4. Safe and comfortable seating is equipped with a warning system, which alerts users when the seat belt is unfastened.
5. Exhaust fans in the gas forklift create a healthier working environment.
6. Our LPG forklift truck has an integrated overhead guard that protects the operators.
Parameters:
| Model | CPQD25 | ||||
| 1 | Feture | Power Type | LPG | ||
| 2 | Load Capcity | kg | 2000 | ||
| 3 | Load center | mm | 500 | ||
| 4 | Lift height | mm | 3000 | ||
| 5 | Free lift height | mm | 240 | ||
| 6 | Forkk size | L*W*H | mm | 1070×122×40 | |
| 7 | Mast tilt | FR/RR | . | 6/12 | |
| 8 | Min turning Radius | mm | 2230 | ||
| 9 | Min Right angle stacking aisle width | mm | 3230 | ||
| 10 | Min right angle aisle width | mm | 2430 | ||
| 11 | Min ground clearance | mm | 110 | ||
| 12 | Height of overhead guard | mm | 2070 | ||
| 13 | Overhang | mm | 485 | ||
| 14 | Performance | Max driving speed | Full load | km/h | 19.5 |
| 15 | Max Lifting speed | Full load | mm/s | 500 | |
| 16 | Max drawbar pull | Full load | KN | 11.4 | |
| 17 | Gradeabiity | % | 18 | ||
| 18 | Dimension | Overall length | Without forks | mm | 2580 |
| 19 | Over width | mm | 1160 | ||
| 20 | Height mast lifted(with backrest) | mm | 3750 | ||
| 21 | Height mast lowered | mm | 1995 | ||
| 22 | Chassis | Tyre | Front | 7.00-12-12PR | |
| 23 | Rear | 6.00-9-10PR | |||
| 24 | Wheelbase | mm | 1600 | ||
| 25 | Tread | FR/RR | mm | 970/970 | |
| 26 | Self weight | Without load | Kg | 3660 | |
| 27 | Drive | Battery | Voltage / Capacity | V/Ah | 12/80 |
| 28 | Engine | Model | Nissan K25 | ||
| 29 | Rated Power | kw/r.p.m | 37.4/2300 | ||
| 30 | Rated Torque | Nm/r.p.m | 176.5/1600 | ||
| 31 | Bore * sTROKE | mm | 89×100 | ||
| 32 | No.of Cylinder | 4 | |||
| 33 | Displacement | L | 2.488 | ||
| 34 | Fuel tank capacity | L | 55 | ||
| 35 | Transmission | 1/1manual shift | |||
| 36 | Operating Pressure | Mpa | 18.5 | ||
| 37 | Supplement | Tire type (FR/RR) | Pneumatic | ||
| 38 | Numbers of wheels | pcs | 2/2 | ||
| 39 | lowering speed (full load) | mm/s | 550 | ||
| 40 | Lowering speed ( unload) | mm/s | 540 | ||
| 41 | Axle load distribution (full load) (FR/RR) | kg | 5470/805 | ||
| 42 | Axle load distribution (unload) (FR/RR) | kg | 1475/2305 | ||
Feartures:
