| Load Capacity: | 2500KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Manual | Color: | Red Or Yellow |
Hydraulic Pallet Truck , 2.5 Ton Loading Capacity , Manual Operation , Red / Yellow Color
Advantage:
• Chrome piston and ram for smooth operation and prevents excessive wear on the pump & seal.
• Excellent turning angle of 180 degrees facilities.
• Number of pump strokes-10.Lift height per stroke:11mm.
Remark:
1. Capacity 2000kg available.
2. Special size for width and length can be made according to customer’s requirement.
• Options:
1. Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
2. Fork length:800mm,900mm,1000mm

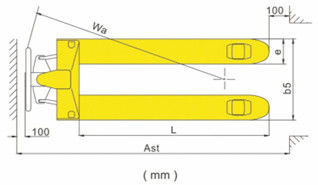

Parameters:
| Model | DF-III | ||
| Capacity | Q(kg) | 2500 | 2500 |
| Lowered fork height | h13(mm) | 85 | 75 |
| Steering wheel | mm | φ180 | φ160 |
| Fork wheel single | mm | Φ70×80 | Φ70×80 |
| Fork wheel tandem | mm | Φ70×60 | φ70×60 |
| Max. lift height | h3(mm) | 200 | 190 |
| Total height | h14(mm) | 1186.5 | 1176.5 |
| Overall length | l1(mm) | 1520/1590 | 1520/1590 |
| Fork length | l(mm) | 1150/1220 | 1150/1220 |
| Fork width | e(mm) | 150 | 150 |
| Width overall forks | b5(mm) | 520/550/680 | 520/550/680 |
| Ground clearance, centre of wheelbase | m2(mm) | 32 | 22 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1720/1790 | 1720/1790 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1770/1790 | 1770/1790 |
| Turning radius | Wa(mm) | 1265/1335 | 1265/1335 |
| Service weight | kg | 55-60 | 55-60 |
