Home  /  Products  /  Electric Forklift Truck  /  2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating
quality 2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating factory
quality 2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating factory

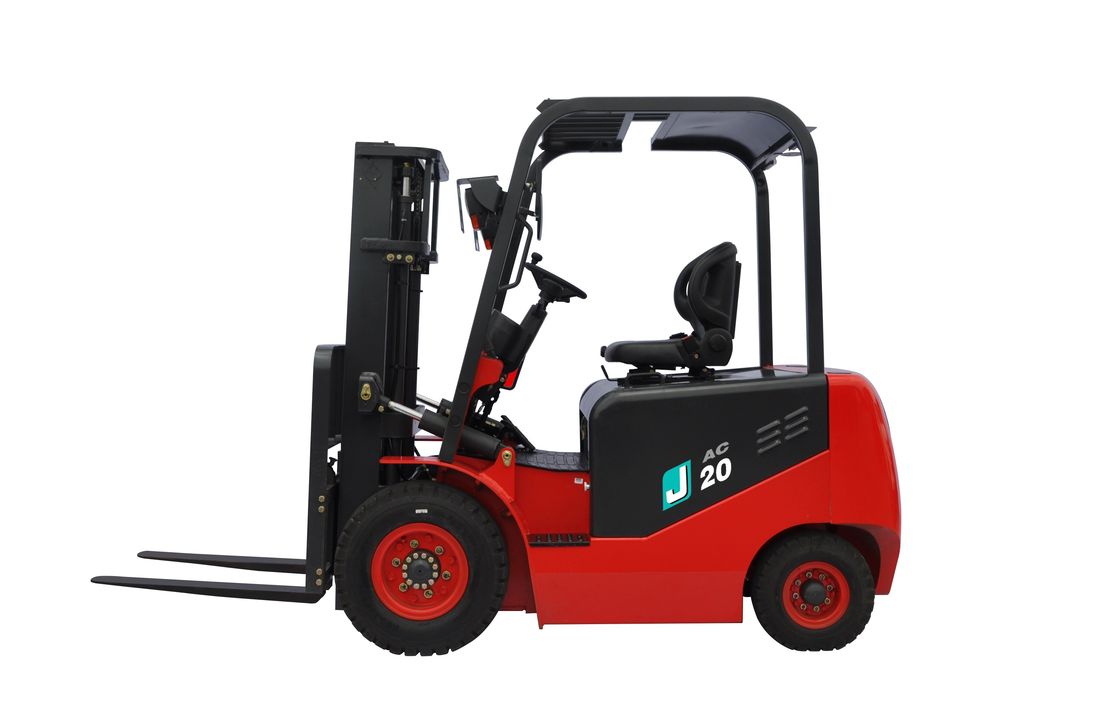

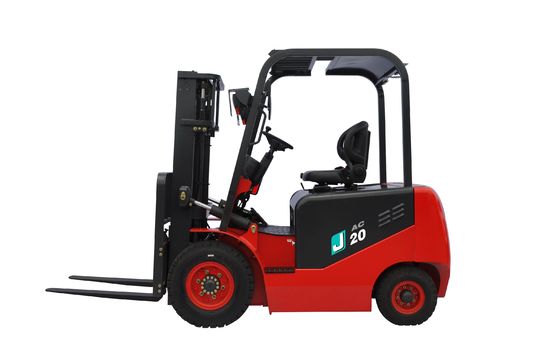

2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating

Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:CPD20
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/Month
Product Details
Highlight:

electric counterbalance forklift

,

electric warehouse forklift
Load Capacity: 2000KG
Warranty: One Year
Power: Electricity
Color: Red
Controller: Curtis Or Imotion
Lift Height: 3m-6m
Product Description

2 Ton Lifting Capacity Battery forklift , AC Driving System , CPD20 , Red Color



Features:

  1. The JAC electric forklift with AC drive has an enclosed instrument panel, protective lampshade, and dual rearview mirrors.
  2. The foot brake pedal is installed slightly higher than the Curtis kernel accelerator for a ergonomic design.
  3. Comfortable seating features an adjustable backrest, elastic seatbelt and mechanical shock absorber installed at the base of the seat.
  4. Batteries with different capacities are available.
  5. The shock-absorbing steering axle of our fork truck greatly improves the comfort level of operation.
  6. All cables are equipped with insulating caps and are insulated and waterproof.
  7. Horizontally arranged transmission device enhances driving efficiency and prolongs the duration of the battery.
  8. Wide-opening counterweight makes it convenient to repair the controller.
  9. Rear-mounted lifter motor is easy to repair.
  10. The high-performance power supply of our electric powered forklift truck is easy to plug and unplug.
  11. One-piece framework improves strength.
  12. Streamlined design includes an integrated tail lamp.
  13. Curtis LED screen displays important information directly so the operator can troubleshoot problems quickly.
  14. Controller imported from the brand Curtis.
  15. The steering wheel's short diameter makes it lightweight and easy to maneuver.
  16. Receipts, invoices, and other files can be stored inside the right side of engine hood.
  17. The JAC lift truck's main power supply switch protects the electrical control system and prevents accidents.
  18. New foot brake with good friction shortens the braking distance by l-1.3m.



Parameters:



Model Unit CPD20J
1 Load Capacity kg 2000
2 Load Center mm 500
3 Mast Lifting Height mm 3000
4 Mast Free Lifting mm 155
5 Fork mm 1070×122×40
6 Mast Tilt( FR/RR) . 6/12
7 Turning Radius mm 2200
8 Ground Clearance mm 110
9 Height of Overhand Guard mm 990
10 Overhang (FR) mm 466
　 Max.Speed(load) km/h 12
12 Max.Lifting Speed(load) mm/s 220(BC) 280(AC)
13 Max. Gradeability % 15 15
14 Overall length(No fork) mm 2435
15 Overall Width mm 1163
16 Wheelbase mm 1520
17 Tread Fron/Rear mm 973/960
18 Service Weight kg 3850
19 Battery Voltage/Capacity V/Ah 48/600
20 Motor Traveling KW 11.1
21 Lifting KW 8.6 12
22 Way of Control 　 BC AC
23 Operating Pressure Mpa 18.5
24 Max.Drawbar Pull KN 17



2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating 0

2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating 1 2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating 2

2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating 3 2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating 4

2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating 5 2 Ton Lifting Capacity Electric Battery Forklift Truck With Comfortable Seating 6
