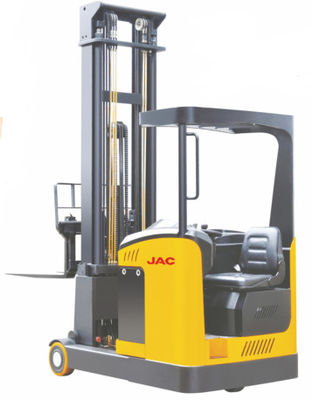

Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration

Place of Origin:CHINA
Brand Name:JAC
Certification:CE,ISO9001,ISO14001,OHSAS18001
Model Number:CQD15
Minimum Order Quantity:1UNIT
Price:negotiable
Payment Terms:L/C, T/T
Supply Ability:1000UNITS/MONTH
Product Details
Highlight:

electric reach truck

,

narrow aisle reach forklift
Loading Capacity: 1500KG
Warranty: One Year
Power: Electricity
Color: Red Or Yellow
Lift Height: 3m-8m
Controller: Curtis Or PG
Product Description

Indoor Forklift , Reach Lift With Load Capacity 1.5 Ton , Lift Height From 3m-8m , High-grade Configuration





CQD15(EPS)Reach Trucks is innovation type based on CQD15M, which with heavy duty chassis, extra large compartment and unequalled visibility. Which can excels bigger load capacity a high reach elevations, compact cabin design can be used in drive in racking, the operator can work more effectively.


Advantages:
• AC control system.
• Powering steering system(EPS).
• Muti-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
• Manual multi valve.
• Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
• German ZF brand gear box.
• Adjustable steering wheel.
• With traveling speed limited device when forks at high level.
• Electronic height limited device.







Parameters:



Model 　 CQD15
Capacity /rated load Q(kg) 1500
Max. lift height h3(mm) 3000/5000/6200/7400/8000
Load centre distance c(mm) 600
Drive wheel mm Φ310×125
Fork wheel mm Φ285×110
Wheels, number front rear(x=driven wheels) 　 1x/2
Tilt of mast/fork carriage forkward/backward α,β(Grad) 2,2(forks)
Height,mast lowered h1(mm) 2086/2240/2740/3190/3390
Free lift h2(mm) 0/1700/2100/2500/2700
Height,mast extended h4(mm) 3800/5800/7000/8200/8800
Height of overhead guard(cabin) h6(mm) 2140
Seat height/stand height h7(mm) 970
Height of crura h8(mm) 315
Overall length l1(mm) 2370
Length(barring fork) l2(mm) 1880
Overall width b1(mm) 1200
Fork dimensions s/e/l(mm) 40/120/1070
Reach distance l4(mm) 600
Aisle width for pallets 1000×1200 crossways Ast(mm) 2800
Aisle width for pallets 800×1200 lengthways Ast(mm) 2890
Turning radius Wa(mm) 1780
Travel speed,laden/unladen Km/h 9/9.3
Lift speed,laden/unladen m/s 0.24/0.3
Lowered speed,laden/unladen m/s 0.5/0.4
Battery voltage,nominal capacity K5 V/Ah 48/400
Battery weight kg 720
Battery dimensions l/w/h mm 1220x344x650
Service weight kg 2900/3000/3100/3200/3300




Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 0                    Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 1

Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 2 Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 3Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 4Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 5

Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 6Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 7

Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 8Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration 9
