| Load Capacity: | 2000KGS | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |

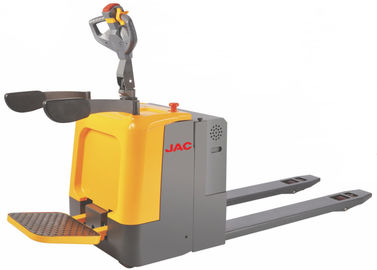

Electric Rider Pallet Jack Truck With Load Capacity 2 Ton , Warehouse Forklift , Standing Type , Red / Yellow Color
Advantage:
• It is designed as stand-on platform type to suit a variety of demanding applications. Rugged structure and super light
steering system provide the unique advantage to work in manufacturing and large warehouse applications.
• AC Drive Motor Maintenance-free, long life expectancy, offers regenerative braking function and ramp inhibit function.
• Key switch control, multi-function display with hour meter and battery discharge indicator.
• The rear truck frame bottom is specially bevel shaped, has a good pass. Maximum 20% of the short slope.
• Floating Drive Axle Supports agile steering, high performance of uphill climbing, helps to reduce vibration and noise.
• Electro-magnetic brake easy for service, improved dependability and life time.
• Foldable Protective Guardrail, protect falling-off the truck (no for lean on) .
Parameters:
| Model | CBD20R-III | |
| Load capacity | Q(kg) | 2000 |
| Load centre distance | c(mm) | 600 |
| Load distance, centre of drive axle to fork | x(mm) | 820/870/940 |
| Fork height, lowered | h13(mm) | 85 |
| Tyre size, front | mm | Φ250×80 |
| Tyre size, rear | mm | Φ80×70 |
| Additional wheels(dimensions) | mm | Φ127×57 |
| Wheels, number front rear(x = driven wheels) | 1x+2/4 | |
| Max. lift height | h3(mm) | 120 |
| Height of tiller in drive position min./ max. | h14(mm) | 1120/1320 |
| Overall length | l1(mm) | 1767/1817/1887 |
| Length to face of forks | l2(mm) | 705 |
| Overall width | b1(mm) | 773 |
| Fork dimensions | s/e/l(mm) | 53x180x1100(1150/1220) |
| Width overall forks | b5(mm) | 520/550/650/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2000/2050/2120 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2100/2100/2120 |
| Turning radius | Wa(mm) | 1510/1560/1630 |
| Travel speed, laden/ unladen | km/h | 7/7.1 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/200 |
| Battery dimensions l/w/h | mm | 637x195x630 |
| Battery weight | kg | 160 |
| Service weight (with battery) | kg | 660 |
