Product Details:
Payment & Shipping Terms:
|
| Loading Capacity: | 2000KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 8-12m | Controller: | Curtis |

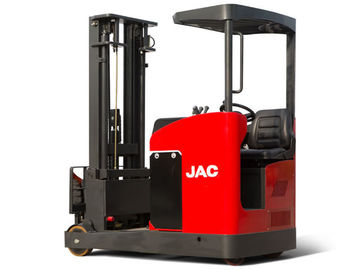

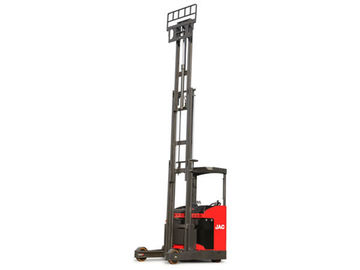

Electric Reach Lift Truck , Warehouse lifting Equipment , Load Capacity 2 Ton , EPS , Max Lift Height 12 M
Advantages:
STABILITY:
1. The large and strong chassis ensures sufficient stability of the forklift.
2. The steel of the "H" mast is imported from Germany, enhances the time and stability of the machine.
3. Large and comfortable compartment with adjustable seat, ergonomically designed.
4. Dual controllers to perform the regulation of the continuous speed of lifting and transporting.
SECURITY AND HIGH EFFICIENCY:
1. Safety speed limiting device in the mast. The travel speed will decrease automatically when the height of the forks exceeds 5 meters.
2. Complete hydraulic steering system allows easy and flexible turning.
3. It uses the hydraulic brake for the front wheel and the electric brake for the engine, it is a simple operation when transporting and braking.
4. The integrated design of the steering and steering system without chain transmission, solves the problems of chain fall caused by the transmission.
EASY MAINTENANCE:
Two methods to change the battery:
1) Side change of the battery per car.
2) Automatic push out and in to control the battery handle in a simple way.
The fixed cover is easy to open for daily maintenance.
Parameters:
| Model | CQD20H(EPS) | CQD20H(EPS) | |
| Load capacity | Q(kg) | 2000 | 2000 |
| Load centre | C(mm) | 600 | 600 |
| Service weight | kg | 4240 | 4840 |
| Drive wheel dimension | mm | φ406×152 | φ406×152 |
| Fork wheel dimension | mm | φ340×134 | φ340×134 |
| Height,mast lowered | h1(mm) | 3390/3590/3890 | 4190/4490/4790 |
| Free lift | h2(mm) | 2700/2900/3200 | 3600/3900/4200 |
| Max.lift height | h3(mm) | 8000/8600/9500 | 10200/11100/12000 |
| Height,mast extended | h4(mm) | 8800/9400/10300 | 11000/11900/12800 |
| Height of overhead guard(cabin) | h6(mm) | 2200 | 2200 |
| Seat height | h7(mm) | 1060 | 1060 |
| Height of crura | h8(mm) | 355 | 355 |
| Fork dimensions | s/e/l(mm) | 40/120/1070 | 40/120/1070 |
| Overall length | l1(mm) | 2510 | 2510 |
| Reach distance | l4(mm) | 600 | 700 |
| Length(barring fork) | l2(mm) | 1950 | 2050 |
| Overall width | b1(mm) | 1510 | 1510 |
| Front width | b2(mm) | 1260 | 1260 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2920 | 2920 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2980 | 2980 |
| Turning radius | Wa(mm) | 1820 | 1920 |
| Travel speed ,laden/unladen | Km/h | 9.3 | 9 |
| Lift speed, laden/unladen | mm/s | 240/300 | 240/300 |
| Lowering speed, laden/unladen | mm/s | 500/400 | 500/400 |
| Battery dimension | mm | 1220x344x727 | 1220x344x727 |
| Battery capacity | AH | 500 | 500 |
| Battery voltage | V | 48 | 48 |
| Battery weight | kg | 860 | 860 |
