Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | 1200KG | Warranty: | One Year |
|---|---|---|---|
| Power: | Electricity | Color: | Red Or Yellow |
| Lift Height: | 1140mm | Controller: | Curtis Or PG |

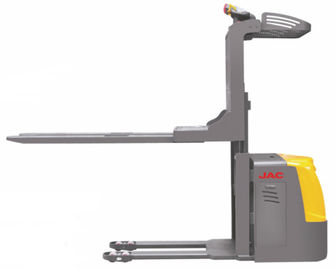

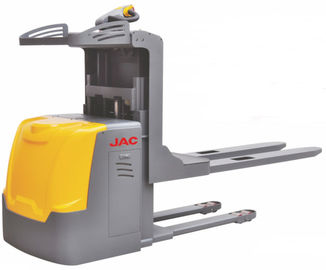

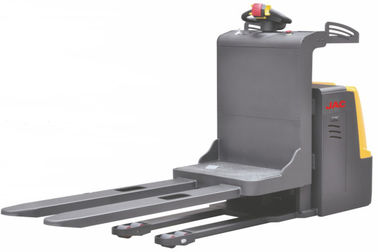

Lifting People Equipment , Order Picker Truck With Load Capacity 1.2 Ton , Lift table , Red or Yellow Color
Advantages:
• Max. lifting height of platform is 1.14M. It is very convenient to pick up goods. The capacity of storage compartment in front of the operator is 60kg.
• Advanced power steering system (EPS) handle ensures effortless and highly efficient maneuver ability.
• Ergonomic human engineering design provides the convenience and comfort operation.
• Combining of regenerative brake and electromagnetic brake provide safe and reliable brake.
• Side-way battery designs is very convenient for maintenance and replacement.
• Adding the USB charge device on the control panel which could charge the phone, pad and so on.
• Strong powers which allow the travel speed at 6KM/H when loaded. The max. gradeability could reach 10%. Improve the working efficiency and reliability.
• Advanced AC control with reliable performance is easy to maintain. Speed frequency control makes good control performance.
• With small turning radius and stepless speed control ensure the trucks can be used in narrow workplace.
• With reasonable layout of the key components, it is convenient to manitain.
Parameters:
| Model | OPL12G | |
| Drive type | Battery | |
| Load capacity/rated load | Q(kg) | 1200 |
| Load centre distance | c(mm) | 700 |
| Load distance, centre of drive axle to fork | x(mm) | 515 |
| Tyre size, front | mm | Φ250×70 |
| Tyre size, rear | mm | Φ80×84 |
| Aditional wheel | mm | Φ150×60 |
| Wheels, number front rear ( x=driven wheels) | 1x+1/4 | |
| Height, mast lowered | h1(mm) | 1275 |
| Max. lifting height | h3(mm) | 1140 |
| Height, mast extended | h4(mm) | 2335 |
| Lowed height | h13(mm) | 90 |
| Overall length | l1(mm) | 2455 |
| Coupling height | l2(mm) | 1383 |
| Overall width | b1(mm) | 812 |
| Forks length | s/e/l(mm) | 60/180/1070 |
| Width overall forks | b5(mm) | 580 |
| Wheelbase ground distance | m2(mm) | 29 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2904 |
| Aisle width for pallets 800×1200 length-ways | Ast(mm) | 2904 |
| Turning radius | Wa(mm) | 1897 |
| Travel speed, laden/ unladen | kw/h | 6 |
| Lifting speed, laden/ unladen | m/s | 0.1/0.14 |
| Lowering speed, laden/ unladen | m/s | 0.1/0.1 |
| Battery voltage, nominal capacity K5 | V/Ah | 24/240 |
| Battery dimensions(l/w/h) | mm | 654×440×254 |
| Service weight(with battery) | kg | 1195 |
